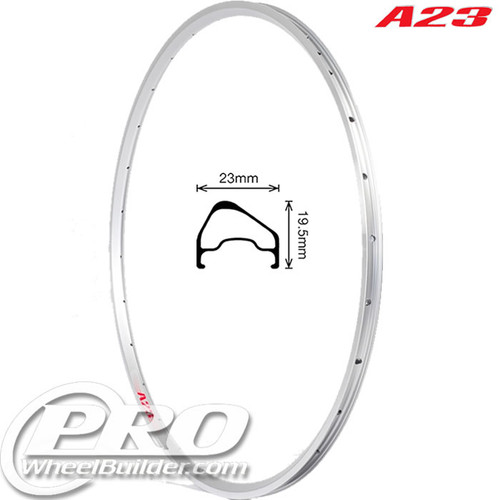

Velocity A23 OC Rim Brake Rim
The Velocity A23 OC is the A23 road rim with its spoke bed moved off center, and it is the version we build on almost every rear wheel and every disc wheel. A geared rear wheel has far more tension on the drive side than the non-drive side; offsetting the spoke holes toward the non-drive side narrows that gap, so both sides sit closer to their ideal tension and the wheel stays true far longer. Velocity extrudes and finishes the A23 OC in the USA.
This page covers the Velocity A23 OC Rim Brake Rim in 29in, 27.5in. The A23 OC is built to order here. Choose the hub, spokes and nipples in the configurator; the wheel leaves Georgia laced, tensioned and trued.
Design and construction
The A23 OC shares the A23's 23mm width and low double-wall profile, which gives a 25 to 35mm tire a wide, consistent footprint, and its tubeless-ready bed. The difference is the spoke bed, offset about 3mm toward one side. On a rear wheel we lace it with the offset toward the non-drive side; on a disc front, toward the non-rotor side. Either way the bracing angles on the two sides come closer together and tension balances.
The factory recommends 110 to 130 kgf spoke tension. Rim-brake and disc versions are available; the rim-brake A23 OC has a machined sidewall.
Every Velocity rim is extruded, drilled and finished at the company's own factory in Jacksonville, Florida, and that shows in the details a builder notices: the spoke holes are drilled to suit the wheel, the joint is clean, and the ERD we measure matches the one on the box. The color range is the other reason people ask for the brand by name; anodized and powder-coated options come and go, and the ones in stock are listed in the configurator so you can match rim, hub and nipples.
How it rides
An A23 OC wheel feels identical to a standard A23 from the saddle, which is the point: the offset is invisible in the ride and shows up only in how long the wheel stays true. Riders who kept having to true a rear wheel notice the difference over a season. The tire support, comfort and cornering feel of the wider rim are all the same.
We build the A23 OC as a rear wheel with a standard A23 front for rim-brake bikes, and as a pair for disc bikes.
Specifications
| Wheel size | 29in, 27.5in |
|---|---|
| ERD | 601 (29in), 560 (27.5in) |
| Inner width | 18 mm |
| Depth | 19.5 mm |
| Drillings | 28h, 32h, 36h |
| Weight | 450g (700c/29in), 425g (650b/27.5in) |
| Material | Aluminum |
| Tire type | Clincher Tubeless Compatible |
| Brake | Rim brake-brake |
| Profile | Triangle |
| Spoke bed | Offset 3 mm |
| Nipples | External |
| Finishes | black, silver, polished, custom |
Which version this is
What this listing covers: the A23 OC in 29in, 27.5in with 28h, 32h, 36h drilling, about 450g, 18mm inside, 19.5mm deep, rim-brake. If you need it in another size or for the other brake type, it is listed separately.
This is the rim-brake A23 OC, with machined sidewalls for caliper, cantilever or V-brakes. Choose it for a rim-brake frame; for a disc-brake bike the disc version, listed separately, drops the brake track and a few grams.
Sizes, fit and compatibility
The Velocity A23 OC Rim Brake Rim comes in 29in, 27.5in and 28h, 32h, 36h drilling, in rim-brake and disc versions; check the name on this page. We build the A23 OC on Velocity Race and Standard hubs, DT Swiss 350 and 240, Shimano, White Industries T11 and CLD, Bitex and Chris King R45 hubs, usually with Sapim Laser, Race or CX-Ray spokes or DT Competition and Aerolite.
Tire range on the A23 OC is 23 to 35mm. Tell the configurator your bike type and weight and it suggests a spoke count and lacing pattern to suit.
Build it with us
We build this rim to order. Open the Custom Wheel Program with the Velocity A23 OC Rim Brake Rim already selected and pick the parts around it; it is offered for road rim brake, track and road single-speed and touring builds, and the configurator will not let you assemble a combination we would not build.
Spoke head is decided by the hub, not the rim: this rim builds equally well with J-bend or straight-pull spokes, and the configurator only offers the spokes that match the hub you pick.
Velocity's testing and certifications
Velocity USA rolls, drills, anodizes and builds its aluminum rims at its own factory in Grand Rapids, Michigan; Velocity states the extrusion comes from Profile Precision Extrusions in Arizona. Production moved there from Jacksonville, Florida beginning December 2016. Rims are sleeve-joined: a piece of extrusion shaped to the rim's inner cavity is bonded in and the join heat-treated to set the bonding agent, then the rim is drilled, cleaned of swarf and anodized in Velocity's own tanks. Spoke holes are drilled at an exit angle of around 4 degrees, alternating flange bias at every other hole.
Velocity states that "Rims and wheels are checked for quality at every step of our process" and that it tests rims on an in-house load machine it calls the "Killdozer" "so that we can simulate a larger rider and calculate how many spokes result in a sturdy, quality wheel." Its spoke-count guidance by total rider-plus-gear weight is 200-229 lb: 32 spokes; 230-259 lb: 36; 260-300 lb: 36 front / 40 rear. Velocity recommends building to between 110 kgf and 130 kgf spoke tension and builds its Clydesdale wheels to 120 kgf.
Velocity's videos
From Velocity
Certifications
- Made in USA claim — Velocity states it rolls, drills, anodizes and builds rims and wheels by hand in Grand Rapids, MI using locally sourced materials (all production consolidated there December 2016) (source)
Sources on Velocity's site:
- Tech - Velocity USA
- About - Velocity USA
- About Us - Velocity USA
- Go Big And Get Home: Clydesdale Wheels And YOU! - Velocity USA
- Manufacturing with Passion: Velocity USA's Grand Rapids Wheel Factory - The Radavist
The figures, certificates and media above are Velocity's own. ProWheelBuilder does not run these tests; our part is the wheel we build on the rim.
Building it at ProWheelBuilder
Velocity USA makes the A23 OC; ProWheelBuilder is an independent wheel builder in Georgia, not the manufacturer. Offset rims need the spoke lengths calculated per side, which we do from the rim's measured ERD and offset; the wheel is tensioned in stages with a gauge, stress-relieved and trued before it ships. Tubeless tape and a valve are fitted on request.
The configurator shows only hubs and spokes that match the A23 OC drilling and color you choose, strikes through combinations that are not made, and prices the wheel live.
Warranty
Velocity's warranty. Velocity warrants its rims against defects in material and workmanship for the life of the product, repairing or replacing at its option. Normal wear, accidents, misuse, improper assembly and poor maintenance are excluded.
ProWheelBuilder. If we lace this into a wheel for you, that wheel also carries ProWheelBuilder's own one-year warranty, which covers broken spokes regardless of cause and all wheel-related labor, including truing and rebuilding, for a year from purchase. Where a rim or hub is covered by its maker, we make the manufacturer's claim for you and coordinate it; where it is not, we offer an eligible replacement rim or hub at 25% off current retail. Shipping to and from us is the customer's. This cover does not extend to wheels built from components you supply yourself.
Full terms are on our Policies & Warranty page.
A23 OC Rim Brake Rim questions
What tire width suits this rim?
At 18mm inside this is a road width. It suits roughly 25 to 32mm tires, which is where most road bikes now sit, and it will run a 23 if you still want one. Go much wider than 32 on this rim and the tire starts to balloon above the sidewalls and squirm when you lean on it.
Should I use the A23 OC on the front too?
On a disc front, yes; the rotor side has the same tension imbalance as a geared rear. On a rim-brake front the standard A23 is symmetric and correct.
Which way does the offset go?
Toward the non-drive side on a rear wheel and the non-rotor side on a disc front. We lace it correctly; if you are having it built elsewhere, tell your builder.
Is the A23 OC tubeless?
Yes. Same tubeless-ready bed as the A23; Velocity tape and a valve are fitted on request.
What tires fit the A23 OC?
23 to 35mm. A 25 to 28mm road tire or a 33mm cross tire is the usual pairing.
Is ProWheelBuilder the manufacturer of the Velocity A23 OC Rim Brake Rim?
No. Velocity makes the rim. ProWheelBuilder is an independent custom wheel builder in Georgia that builds it into a finished wheel to your spec.
Is it tubeless-ready?
Yes. Velocity lists the A23 OC Rim Brake Rim as clincher tubeless compatible; we tape and fit a valve when you choose the tubeless option.
