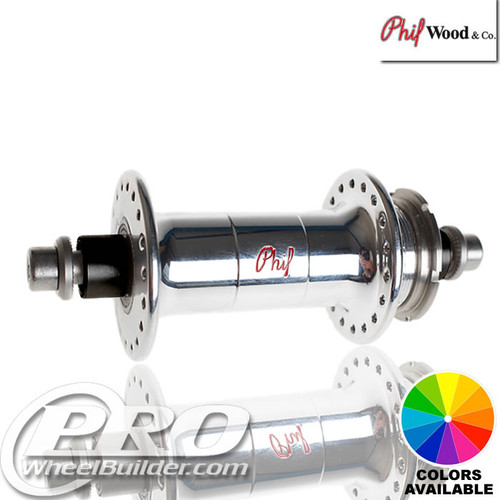

Phil Wood Track Pro Low Flange Single Fixed Rear Hub
The Phil Wood Pro track low-flange hub is the small-flange track hub in Phil's Pro specification: the same San Jose, California machining and full-contact sealed bearings as the standard low-flange hub, with Carbonyte low-drag bearings, a 7075 aluminum axle, titanium bolts and RLR multi-drilled flanges. It is the hub for velodrome racers and fixed-gear riders who want the lowest drag and lightest Phil track hub. This page covers the Phil Wood Track Pro Low Flange Single Fixed Rear Hub.
The Phil Wood Pro track low-flange hub is sold here only inside a wheel we build. Choose the rim, spokes and nipples in the configurator and the finished wheel ships from Georgia laced, tensioned and trued by hand.
Design and construction
Phil Wood's bearings are the point. They are full-contact sealed cartridge bearings, meaning the seal rubs the inner race rather than floating above it, which adds a little drag and keeps water out completely; packed with Phil's own waterproof grease, they run for years in the worst conditions. The touring hub uses a 6061 axle and 6902 bearings, with a Carbonyte low-drag bearing upgrade available, and the shell is machined thick because a touring hub is not where weight is saved. Wide flanges give the rear wheel lateral stiffness under a load.
How it rides
A Phil Wood Pro track wheel rolls with noticeably less drag than the standard hub thanks to the Carbonyte bearings, which on a velodrome is worth having, and it keeps the permanence Phil hubs are known for. It is the Phil track hub for racing.
Specifications
| Position | Rear |
|---|---|
| Axle options | Bolt On 10x120mm Rear, Bolt On 10x126mm Rear, Bolt On 10x130mm Rear |
| Driver bodies | Single Speed Fixed & Fixed (includes 2 lock rings) |
| Drillings | 24h, 28h, 32h |
| Spoke head | J-bend |
| Brake | rim-brake |
| Left flange diameter | 47.5 mm |
| Right flange diameter | 47.5 mm |
| Left center-to-flange | 42.5 mm |
| Right center-to-flange | 30 mm |
| Spoke hole diameter | 2.6 mm |
| Weight | 263g |
| Material | Aluminum |
| Finishes | polished, black |
This version
This version is the rim-brake hub in Bolt On 10x120mm, Bolt On 10x126mm, Bolt On 10x130mm, drilled for 24h, 28h, 32h, about 263g, in polished, black. Those are the only things that differ between the versions of the Pro track low flange; the shell, bearings and seals are the same.
No rotor mount here: this is the rim-brake version of the Pro track low flange, which drops the disc flange and the weight that goes with it. It suits rim-brake road, touring and track frames and it is often the lightest hub in the family. Disc-brake frames need one of the disc versions listed separately.
Sizes, fit and compatibility
The Phil Wood Track Pro Low Flange Single Fixed Rear Hub comes in the drillings listed on this page in 100mm front and 120mm rear bolt-on spacing, fixed or fixed/free. J-bend spokes in any gauge; we build most track wheels with DT Champion or Sapim Race and Laser spokes and brass nipples.
It pairs naturally with the H Plus Son Archetype and TB14, Velocity Deep V and Fusion, and any track rim in the catalog that matches its drilling. Pick track or fixed-gear as your bike type in the configurator and it recommends a spoke count and lacing pattern.
Build a wheel around it
Offered for track and road single-speed builds in our Custom Wheel Program. Start with the Phil Wood Track Pro Low Flange Single Fixed Rear Hub and the configurator pins it for you, then checks each choice you make against it.
How Phil Wood tests its hubs
Phil Wood & Co. states it was founded in 1971 and that its products are “completely designed, manufactured and assembled in San Jose, California”, machined from US-produced materials on CNC machining and turning centers with diamond-tipped tools. The company says a front hub shell passes through seven production stations before assembly, and that it specifies every bearing it uses, many made exclusively to its specifications. It publishes no load, fatigue, salt-spray, or ISO/EN figures.
Phil Wood states its Standard bearings are stainless steel cartridge bearings with a 100% Phil Waterproof Grease fill and full contact seals; Carbonyte bearings use a 30% Carbonyte grease fill with a partial contact seal and are not recommended for year-round mountain biking or touring. Shouldered axles position the bearings so no adjustment is required. Shells are 6061 aluminum with 7075 axles and end caps; the front touring hub weighs 202 g. Rider-plus-bike limits are 280 lb / 127 kg (Classic) and 190 lb / 86 kg (Pro).
The warranty page states a lifetime limited warranty against manufacturing defects for the original owner, one year on all bearings, and one year on Classic stainless cassette bodies and Pro aluminum parts; normal wear, contamination, misuse, modification, improper maintenance, and incorrect reassembly are excluded, with proof of purchase required.
Phil Wood's videos
Certifications
- Made in USA — “Our products are made in the USA- they are completely designed, manufactured and assembled in San Jose, California”; “All of our manufactured items are machined out of US-produced materials” (source)
- Lifetime limited warranty — Original owner, manufacturing defects; one-year guarantee on bearings and on Classic stainless cassette bodies / Pro aluminum parts (source)
Sources on Phil Wood's site:
- About Us - Phil Wood and Company
- Warranty and Return Policy - Phil Wood and Company
- Bearings - Phil Wood and Company
- Hubs - Phil Wood and Company
- Touring Hub Front - Phil Wood and Company
Phil Wood publishes those results; ProWheelBuilder builds the hub into a wheel and does not test it in a lab.
Building it at ProWheelBuilder
Phil Wood makes the Pro track low flange; ProWheelBuilder is an independent custom wheel builder in Georgia and not the manufacturer. Spokes are cut from the ERD we measure on the actual rim, the wheel comes up in stages on a tensiometer, and it is stress-relieved and trued before it goes in the box; tape and a valve go on if you ask.
The configurator filters to what fits, crosses out what is not made, and prices the build as you go.
Warranty
Phil Wood's warranty. Phil Wood & Co. gives the original owner a limited lifetime warranty against manufacturing defects, with a one-year guarantee on bearings, stainless cassette bodies and aluminum Pro parts. Proof of purchase from an authorized dealer is required, and bearings that fail from contamination or lack of maintenance are not covered.
ProWheelBuilder. Lace this into a wheel here and the finished wheel gets our own one-year warranty as well as the maker's. For twelve months we replace broken spokes however they broke, and the work on the wheel is on us - truing, re-tensioning, a rebuild where it is needed. If the rim or hub is covered by its manufacturer we put the claim in and chase it; if it is not, we supply an eligible replacement rim or hub at 25% off the current retail price. Carriage both ways is the customer's, and this does not cover wheels built from parts you send in.
Full terms are on our Policies & Warranty page.
Track Pro Low Flange Single Fixed Rear Hub questions
Can I use this hub with disc brakes?
No - this is the rim-brake version and it has no rotor mount at all, which is exactly why it is lighter and simpler. It is the one for a rim-brake road, track or classic frame. A disc frame needs one of the disc versions of this hub, which are listed separately.
Which spokes and nipples suit the Pro track low flange?
For most riders a double-butted spoke such as Sapim Race or DT Competition with brass nipples; lighter riders can go to Sapim Laser or CX-Ray. The configurator recommends a gauge and count for the Pro track low flange from your bike type and weight.
Low flange or high flange?
High flanges shorten the spokes for a stiffer wheel and a classic track look; low flanges are lighter and a touch more compliant. Phil makes both.
Fixed or fixed/free?
Fixed for the velodrome and pure fixed-gear riding; fixed/free flips between a fixed cog and a freewheel.
What spacing?
100mm front and 120mm rear, the track standard, with bolt-on axles.
Is the low-flange hub made in the USA?
Yes. Every Phil Wood hub is machined and assembled in San Jose, California.
Is ProWheelBuilder the manufacturer of the Phil Wood Track Pro Low Flange Single Fixed Rear Hub?
We are not. Phil Wood manufactures the hub; ProWheelBuilder's part is the wheel: measuring, lacing, tensioning and truing it here in Georgia.
