Surly Hubs Custom Hand Built Wheels


Custom Surly Hub Wheels, Built by Hand
Pick a Surly hub, choose your rim, spokes and color, and we lace and true the wheel ourselves, one at a time, in our Georgia shop.
Why build your wheel around a Surly hub:

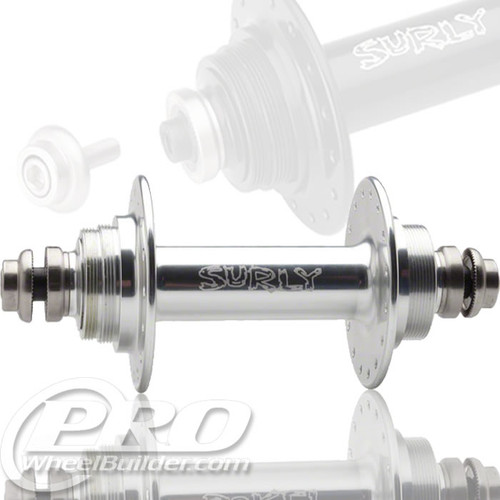

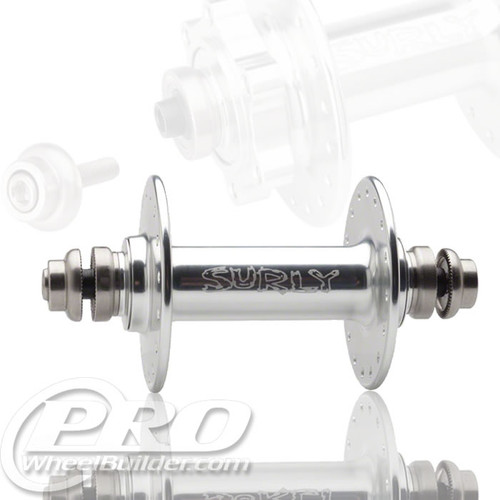

- Two Ultra New hubs to start from: the Front and the Fixed Free Rear
- Made for track and road single-geared wheels

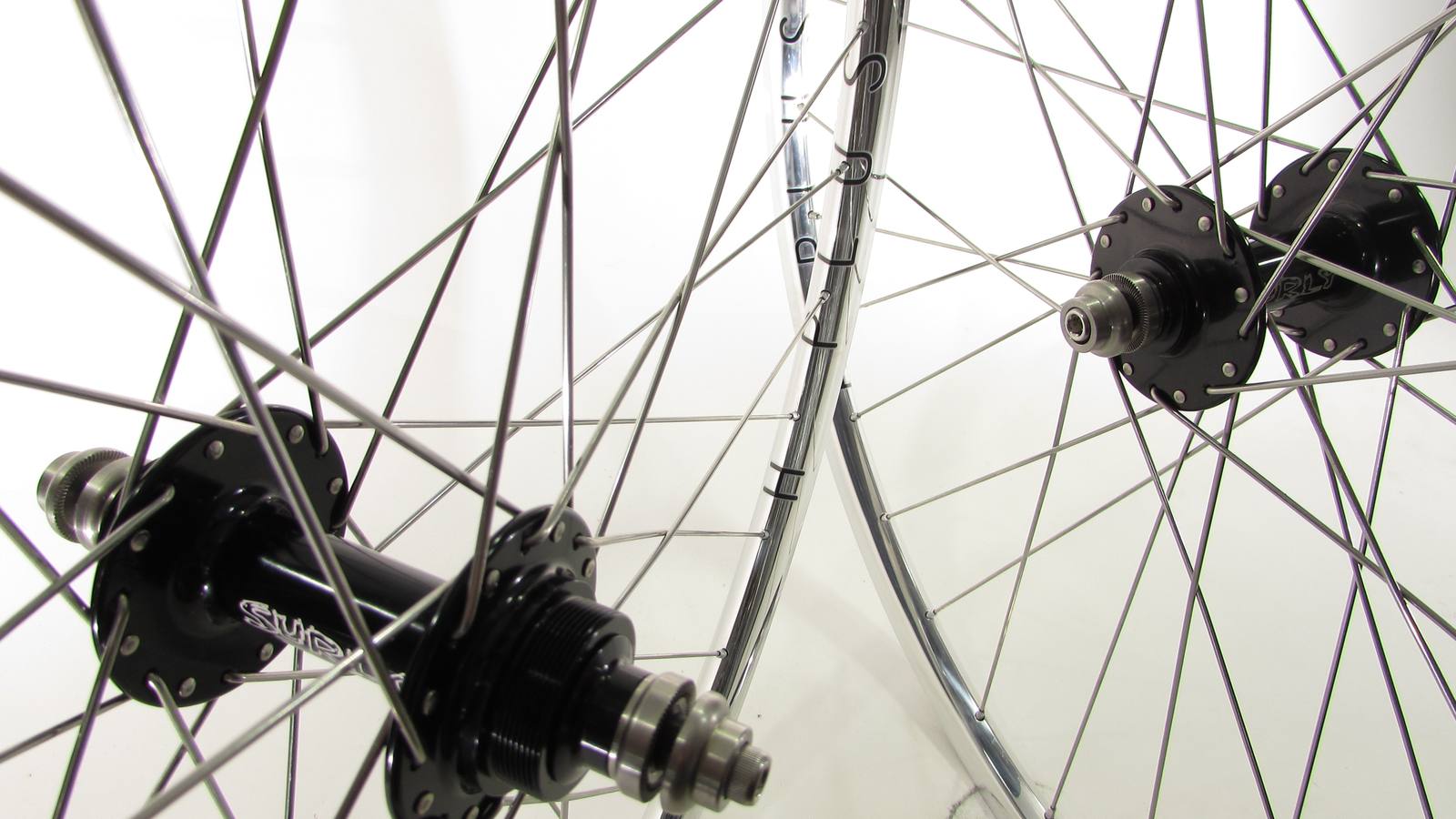

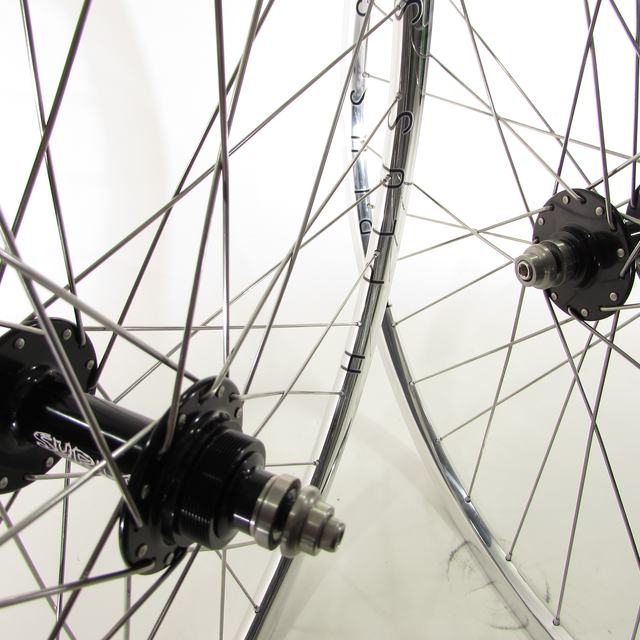

- Our stand has paired Ultra New hubs with H Plus Son Archetype rims and Sapim Leader spokes
- One builder laces your wheel in our Georgia shop; no machine builds, ever
Build your custom Surly wheel for:
From our truing stand

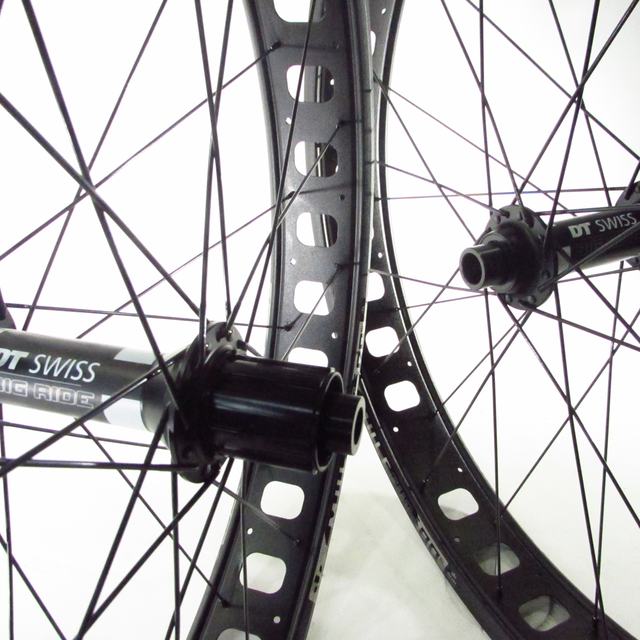

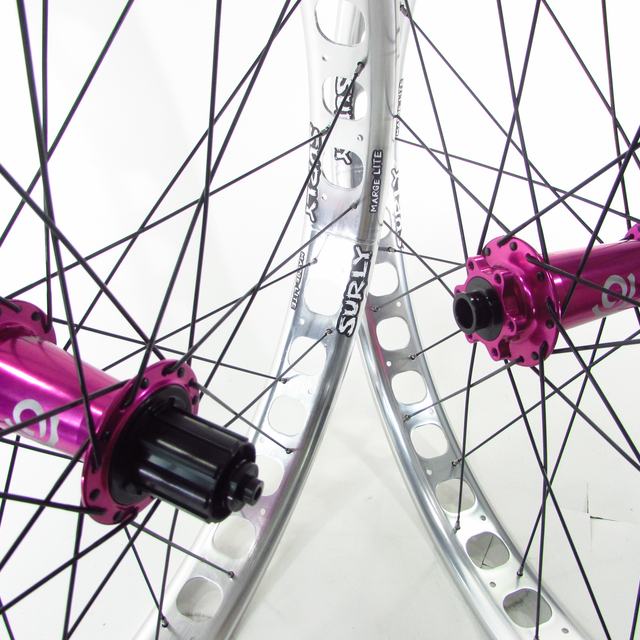

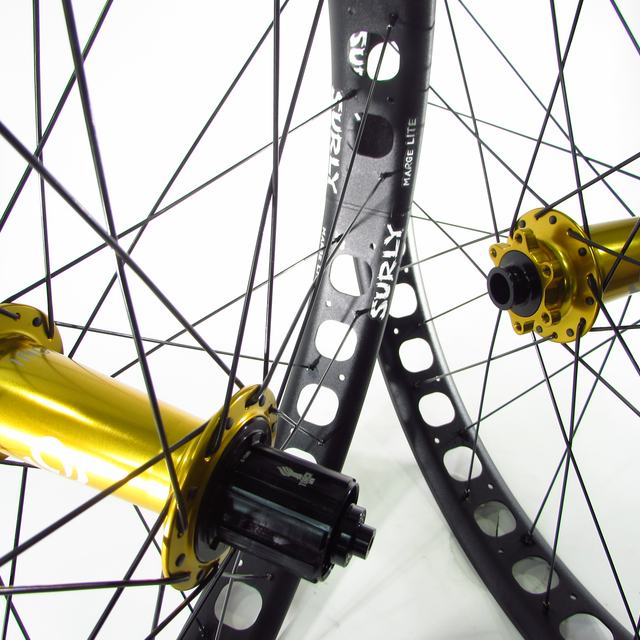

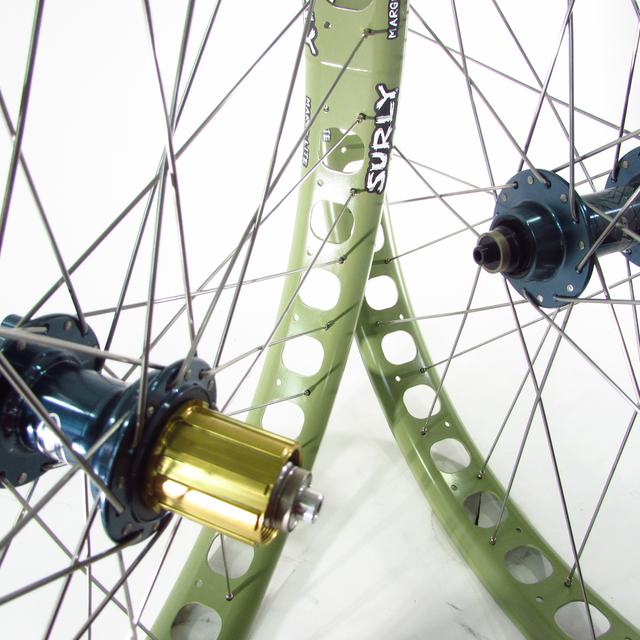

Surly wheels we’ve built
Every one of these was laced and trued in our shop.






Start with the hub
The Surly hubs we build with
Each card opens the builder with that hub already chosen. Scroll for all 2.
How it works
From parts bin to your doorstep
1Pick your parts
Choose a Surly hub, then the rim, spokes and nipples. The builder only offers parts that fit together.
2We measure and prep
Rim and hub are measured here: real ERD, real flange geometry. Spokes are cut to the length your build needs.
3Laced by hand
One builder laces your wheel on the stand. No machine builds, ever.
4Tensioned and trued
Brought up to even tension, stress-relieved, trued round and true, and checked again after it settles.
More about Surly custom wheels
Specs, pairings and FAQ
Custom hand built wheels with Surly hubs
Surly builds for touring, fat bikes and loaded travel, where robustness beats every other consideration.
We lace Surly hubs to the rim of your choice and build the wheel by hand in our Georgia shop - tensioned evenly, trued flat and round, and stress-relieved before it ships. Spoke lengths are calculated from the measured flange geometry of your exact hub, not estimated from the model name.
Why Surly hubs are different
- A hollow axle with two ways to mount. Ultra New hubs come with thread-in fixing bolts that tighten with a 6mm hex wrench. Take the bolts out, slide in a quick release skewer, and the same hub is QR, with no conversion kit needed.
- Knurled hardware that grips the frame. The stainless bolt caps and cone nuts are heavily knurled for bite, which Surly says reduces the chance of the wheel slipping in the frame under high load. That matters on a fixed or single-speed bike, where the axle sits in a horizontal dropout.
- Steel where it carries the load. The axle is CroMoly steel and the fixing bolts are 10.9 stainless, chosen by Surly for strength and corrosion resistance. The cones and dust caps interlock, which Surly says keeps the axle stiff.
- Bearings you never set. The hub spins on non-adjustable 6901 bearings, so there is no preload to get right. You put the wheel on, tighten the bolts and ride.
- Fixed on one side, free on the other. The rear on this page is threaded for both, so you can flip the wheel to change from fixed to freewheel. Its shell is forged and machined 6061-T6 aluminum with medium-height flanges.
- Internals you can replace. Surly sells axle kits with the axle, two 6901 bearings, dust shields, cones and bolts, so worn internals can be renewed with the hub still laced in the wheel.
The Surly hubs we build with
These are J-bend hubs, which take standard J-bend spokes - the widest choice of gauge, color and material, and the easiest to source anywhere in the world if you ever break one far from home.
Axle spacing has to match your frame or fork, and it is the single most common thing people get wrong when ordering a wheel. We build Surly hubs in 100mm, 120mm, 130mm. If you are unsure what your frame takes, measure the inside faces of the dropouts before you order, or email us and we will work it out with you.
What to pair with a Surly hub
A wheel is a system: the rim decides the tire and the braking, the hub decides the drivetrain and the axle fit, and the spokes have to suit both. Start from whichever end matters most to you and the configurator will keep the other end compatible.
Popular Surly hub and rim pairings
Rims our customers build with each Surly hub, led by the pairings they choose most often in our build records since 2009. Every rim listed is in the builder today in a drilling and brake type that fits; tap a hub to start that build.
- Surly Ultra New with Velocity Cliffhanger, Velocity A23, DT Swiss R 460, Velo Orange Enterprise, HED Belgium R, Astral Leviathan Touring
Every model of both brands that fits, on one page: Velocity wheels with Surly hubs, DT Swiss wheels with Surly hubs, Velo Orange wheels with Surly hubs, Astral wheels with Surly hubs, HED wheels with Surly hubs, NOX Composites wheels with Surly hubs
Popular rims brands for these builds:
- Astral Rims
- Boyd Rims
- Chromag Rims
- Convergence We Are 1 Rims
- Derby Rims
- DT Swiss Rims
- ENVE Composites Rims
- H Plus Son Rims
- HED Rims
- IBIS Rims
- Industry Nine Rims
- Kinlin Rims
- Mavic Rims
- Nextie Rims
- NOX Composite Rims
- PWB Rims
- Race Face Rims
- Reserve Rims
- Spank Rims
- Stan's No Tube Rims
- Surly Rims
- Velo Orange Rims
- Velocity Rims
- WTB Rims
Want to check spoke lengths for a Surly hub before you order? Our free spoke length calculator has the measured dimensions for it.
Surly custom wheel questions
Can you build a wheel with a Surly hub I already own?
Yes. Choose the supply-your-own hub option in the configurator, ship it to us, and we will lace it into a new wheel with new spokes cut to the right length for that exact hub. You pay for the parts you need and the build labor.
Which axle spacing do I need?
Whatever your frame or fork takes - we build Surly hubs in 100mm, 120mm, 130mm. Measure between the inside faces of your dropouts if you are unsure, or email us and we will work it out from your bike.
Can a Surly hub be relaced into a new rim later?
Yes, and it is one of the better arguments for a quality hub. When the rim wears out or cracks, send us the wheel and we will build the hub into a new rim with new spokes. Spokes are not reused - they have taken a set at the old rim's dimensions.
How long will my Surly wheel take?
Build time comes down to parts availability rather than bench time. Your estimated ship date is shown in the configurator before you check out, so you know the date before you pay.
Not sure what to pick? Email info@prowheelbuilder.com (fastest) or leave a voicemail on 470-253-0929 — you will be talking to the people who build the wheels.
Not sure which hub or rim?
Tell the Build Assistant how you ride and what you want to spend, and it ranks complete builds for you.
Open the Build Assistant →
