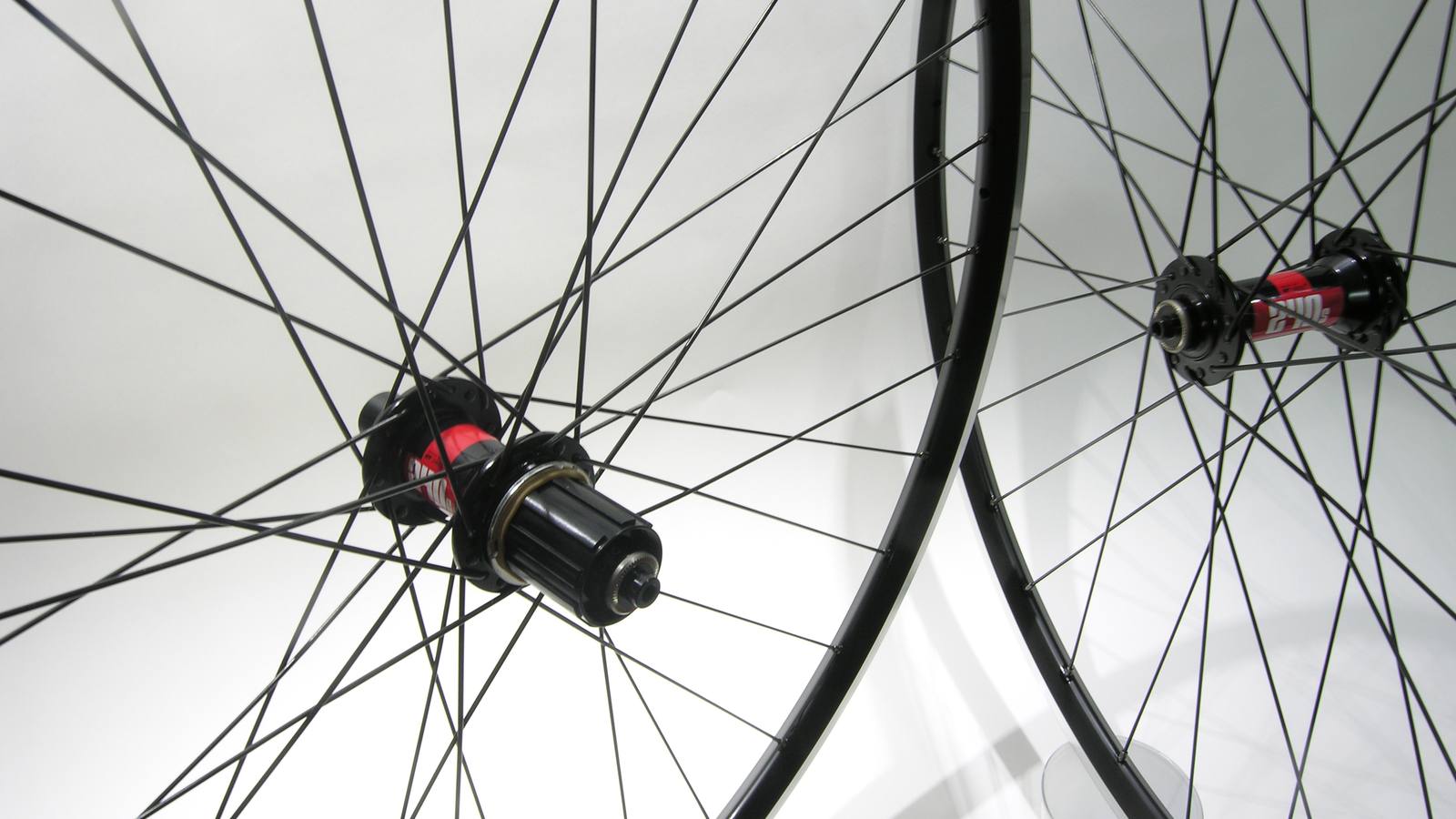

Custom wheel built by ProWheelBuilder: DT 240 Black hubs, Velocity A23 MSW Black rims

Custom Wheels on Velocity Rims, Built by Hand

Pick a Velocity rim, choose your hub, spokes and color, and we lace and true the wheel ourselves, one at a time, in our Georgia shop.

Why build your wheel around a Velocity rim:

  • Every wheel is laced and trued by hand, one at a time, in our Georgia shop
  • Builds for road, touring, track, tandem, mountain, fat and plus bikes
  • Each rim card opens the builder with that rim already chosen
  • Our builds pair Velocity rims with DT Swiss, Shimano, Chris King and White Industries hubs
Read more

Build your custom Velocity wheel for:

From our truing stand

Velocity wheels we’ve built

Every one of these was laced and trued in our shop.

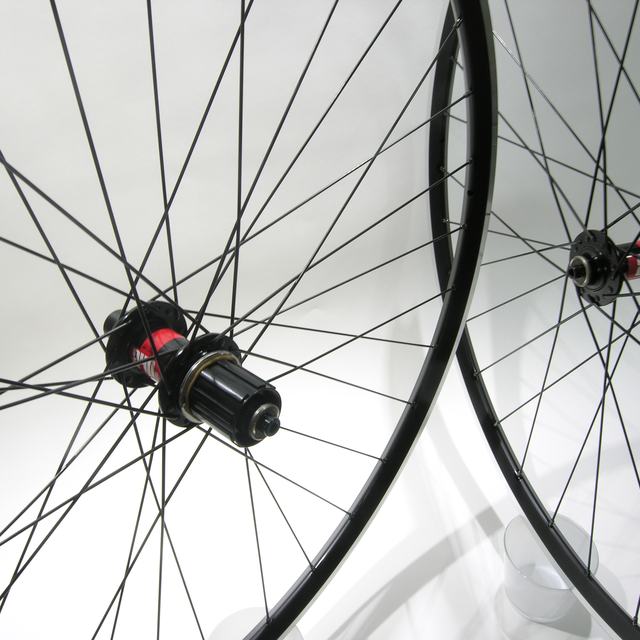

Custom wheel: DT 240 Black hubs, Velocity A23 MSW Black rims, DT Competition Black spokes
Velocity A23 MSW Black rimsDT 240 Black hubs · DT Competition Black spokes

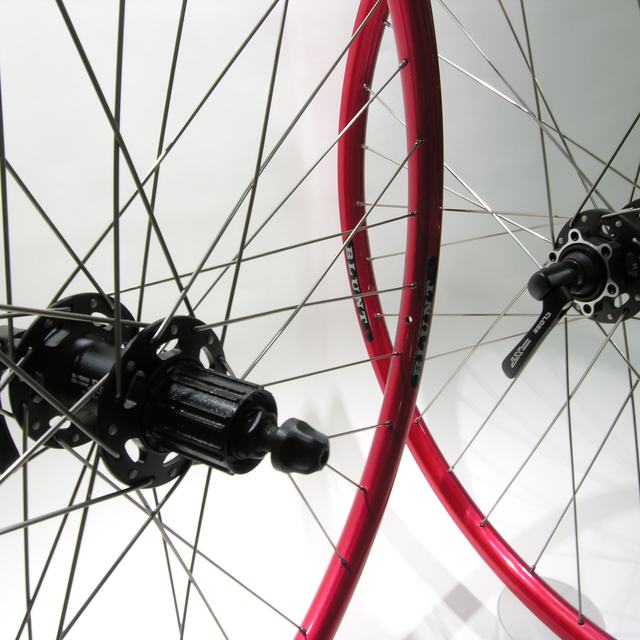

Custom wheel: Shimano XT 756 Black hubs, Velocity Blunt Red rims, DT Champion Silver spokes
Velocity Blunt Red rimsShimano XT 756 Black hubs · DT Champion Silver spokes

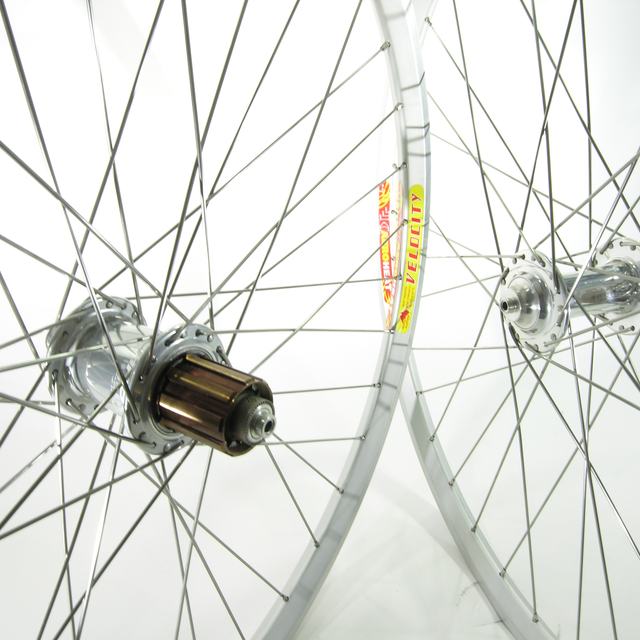

Custom wheel: Chris King Classic High Flange Silver hubs, Velocity Aeroheat Silver rims, Sapim Strong spokes
Velocity Aeroheat Silver rimsChris King Classic High Flange Silver hubs · Sapim Strong spokes

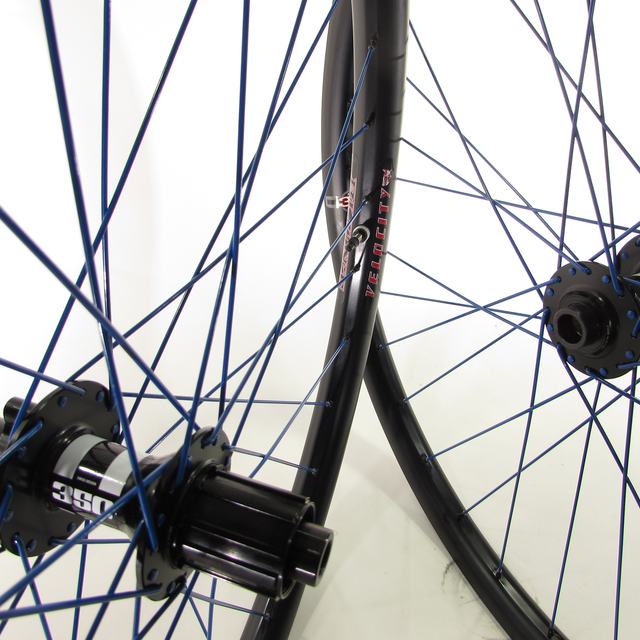

Custom wheel: DT 350 6 Bolt Black hubs, Velocity Blunt Black rims, PWB Blue spokes
Velocity Blunt Black rimsDT 350 6 Bolt Black hubs · PWB Blue spokes

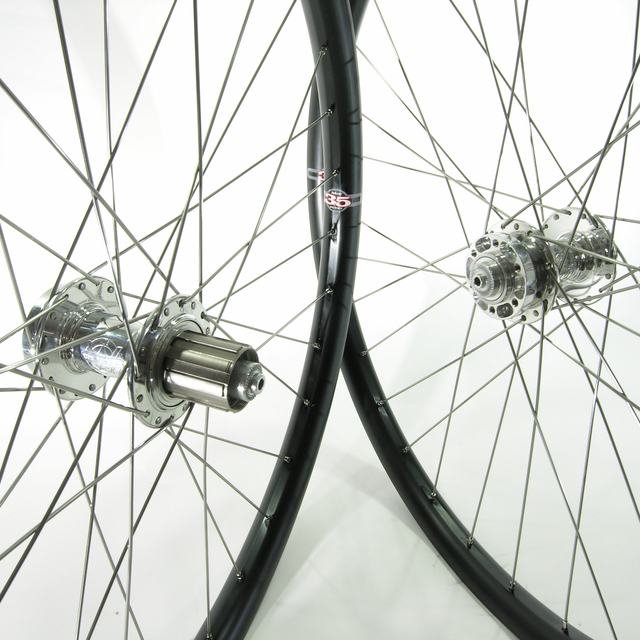

Custom wheel: White Industries Mi6 Polished hubs, Velocity Blunt 35 Black rims, DT Champion Silver spokes
Velocity Blunt 35 Black rimsWhite Industries Mi6 Polished hubs · DT Champion Silver spokes

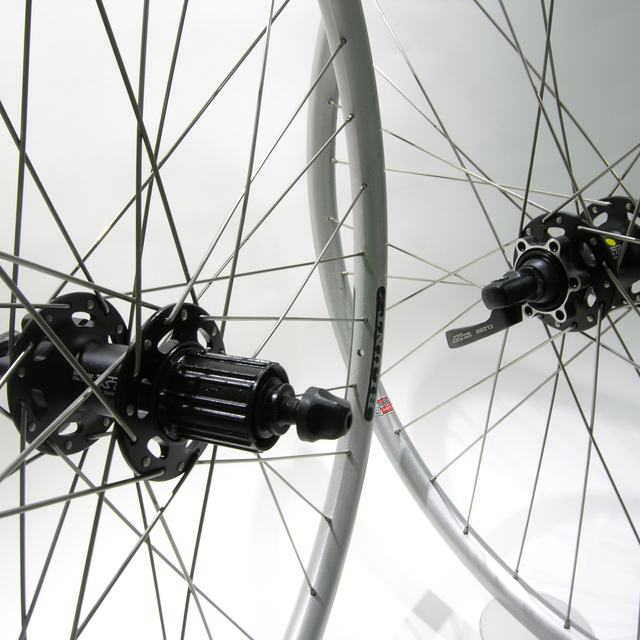

Custom wheel: Shimano XT 756 Black hubs, Velocity Blunt Silver rims, DT Champion Silver spokes
Velocity Blunt Silver rimsShimano XT 756 Black hubs · DT Champion Silver spokes

Start with the rim

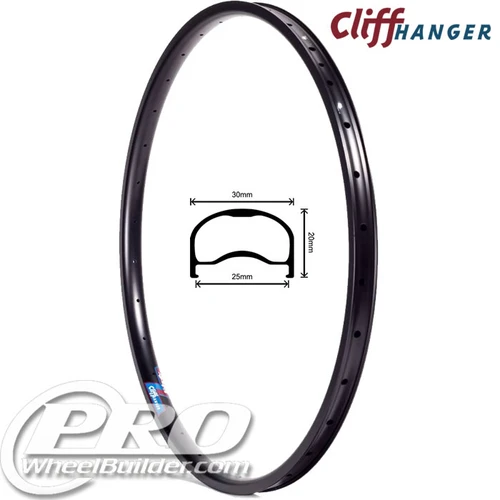

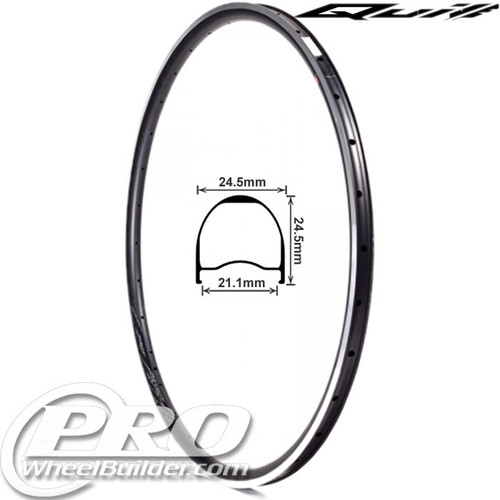

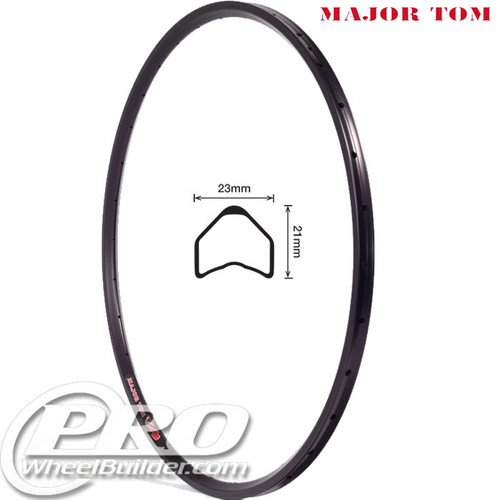

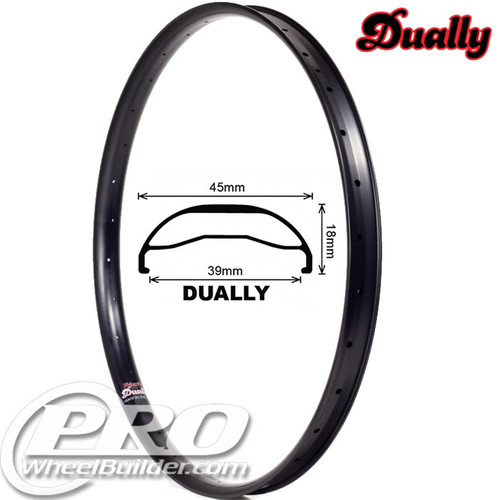

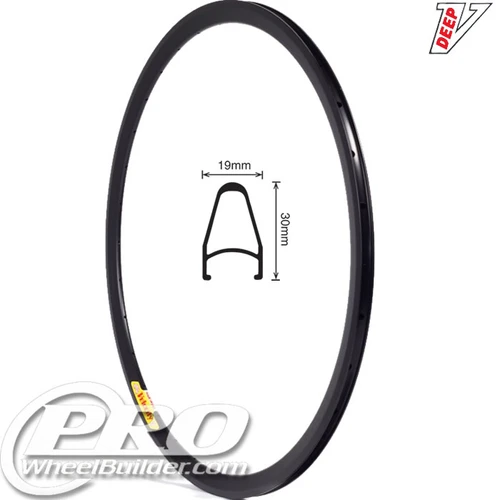

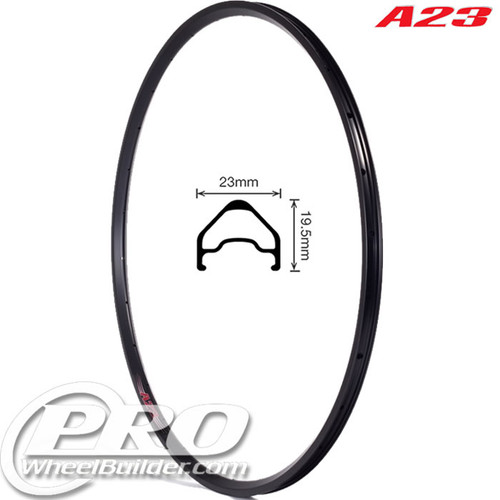

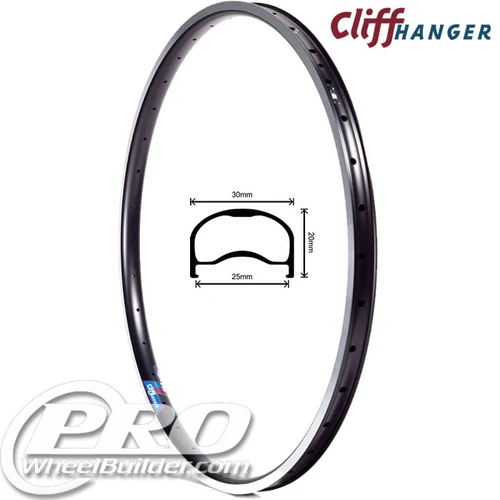

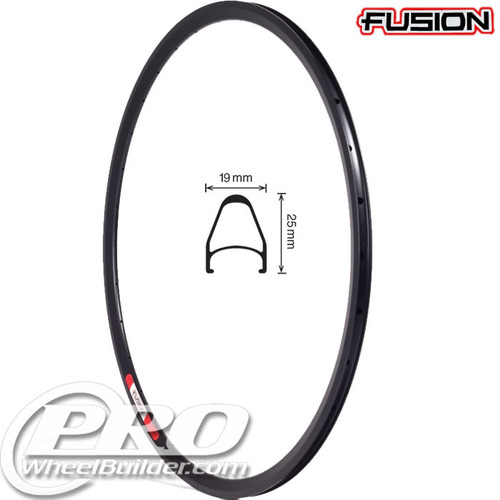

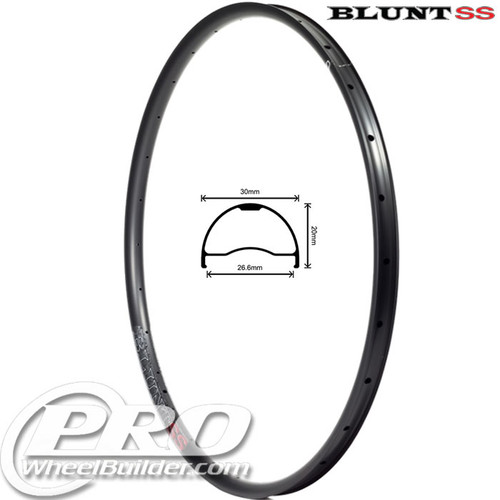

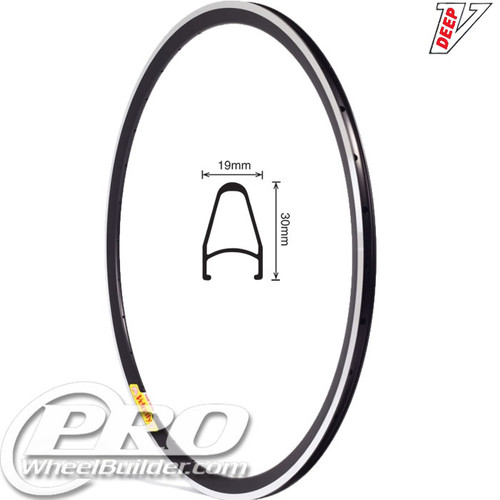

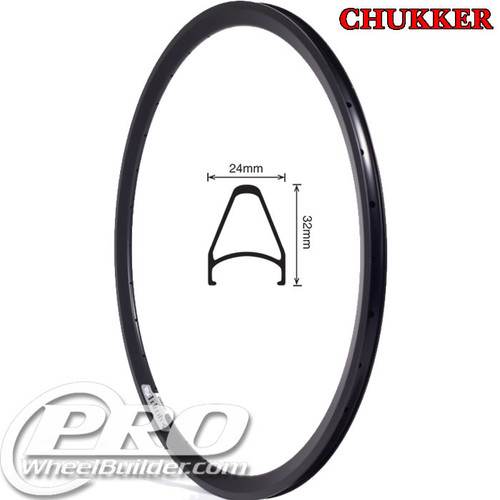

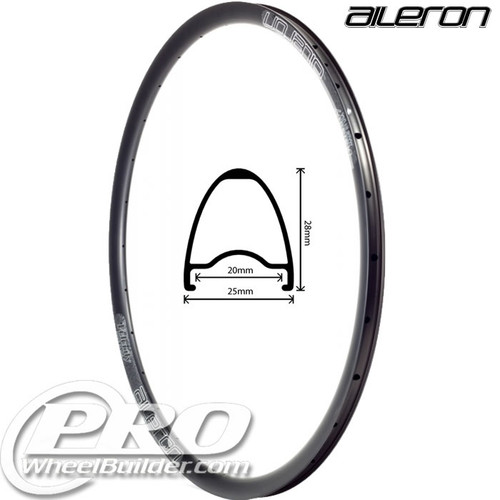

The Velocity rims we build with

Each card opens the builder with that rim already chosen. Scroll for all 24.

See all Velocity rims →

How it works

From parts bin to your doorstep

  1. Pick your parts1

    Pick your parts

    Choose a Velocity rim, then the hub, spokes and nipples. The builder only offers parts that fit together.

  2. We measure and prep2

    We measure and prep

    Rim and hub are measured here: real ERD, real flange geometry. Spokes are cut to the length your build needs.

  3. Laced by hand3

    Laced by hand

    One builder laces your wheel on the stand. No machine builds, ever.

  4. Tensioned and trued4

    Tensioned and trued

    Brought up to even tension, stress-relieved, trued round and true, and checked again after it settles.

More about Velocity custom wheels

Specs, pairings and FAQ

Custom hand built wheels with Velocity rims

Velocity rolls and finishes rims in Grand Rapids, Michigan, with a range that runs from narrow classic road profiles to wide tubeless gravel and touring sections.

We lace Velocity rims to the hub of your choice and build the wheel by hand in our Georgia shop - tensioned evenly, trued flat and round, and stress-relieved before it ships. You pick the hub, spoke gauge and color, nipple material and lacing pattern; we make sure the combination is one that can actually be built.

Why Velocity rims are different

  • Rolled, drilled and anodized in Grand Rapids, Michigan. Velocity moved all production there in 2016. It buys its extrusion from a supplier in Arizona and does the rolling, drilling and finishing itself.
  • Color grown into the metal. Velocity anodizes its rims in house. The process forms a hard oxide layer that is part of the aluminum rather than a coating on top, so Velocity says it won't chip or peel.

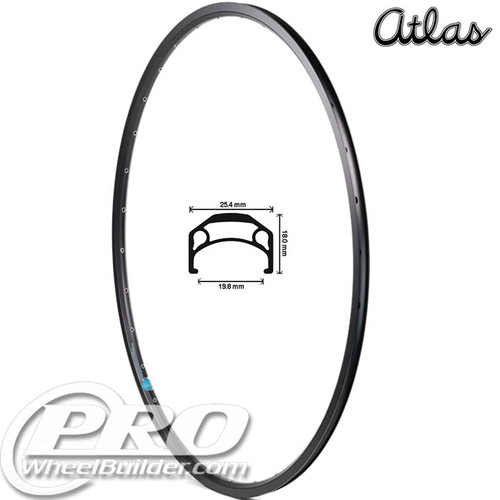

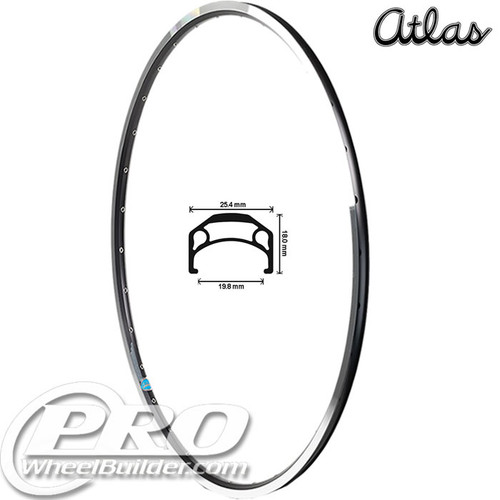

  • Spoke holes angled for the lacing. Holes are drilled at about 4 degrees and alternate between the left and right flange, so each nipple points closer to where its spoke is headed. The Atlas is the only rim Velocity eyelets.
  • Machined sidewalls that take little material. On anodized rim brake models, Velocity removes as little aluminum as it can to leave a flat, raw braking surface, so brake pads work on bare metal instead of a colored finish.
  • Tubeless only where it is designed in. Rims listed as tubeless ready have tight tolerances at the bead and call for thin Velotape. Velocity says any rim not listed that way must run tubes, so check the model before you pick a tire setup.
  • A published chart of sizes and strength. Velocity's model matrix runs from 16 inch to 32 inch and rates each rim from Featherweight to Strongest with an optimal tire width, which makes rims easy to compare. The builder shows which sizes we offer for each rim.

The Velocity rims we build with

Every Velocity rim we build with is aluminum. That is not the budget option so much as the practical one: an aluminum rim can be trued back from an impact that would write off a carbon rim, and it is far easier to justify on a bike that gets ridden in winter.

Internal width is the number that decides your tire. The Velocity rims we carry sit mostly in the 18.0-30.2mm band, and that band is what determines the tire sizes that will take a sensible shape on the rim - too narrow and a big tire rolls on the sidewall, too wide and a small tire is left square and harsh. Tell the configurator what tires you run and it will steer you inside the right band.

What to pair with a Velocity rim

A wheel is a system: the rim decides the tire and the braking, the hub decides the drivetrain and the axle fit, and the spokes have to suit both. Start from whichever end matters most to you and the configurator will keep the other end compatible.

Popular Velocity rim and hub pairings

Hubs our customers build with each Velocity rim, led by the pairings they choose most often in our build records since 2009. Every hub listed is in the builder today in a drilling and brake type that fits; tap a rim to start that build.

Every model of both brands that fits, on one page: Velocity wheels with Shimano hubs, Velocity wheels with White Industries hubs, Velocity wheels with Velocity hubs, Velocity wheels with Hope hubs, Velocity wheels with DT Swiss hubs, Velocity wheels with Phil Wood hubs, Velocity wheels with Bitex hubs, Velocity wheels with SON hubs, Velocity wheels with Chris King hubs, Velocity wheels with Velo Orange hubs, Velocity wheels with Paul hubs, Velocity wheels with Surly hubs, Velocity wheels with Onyx hubs, Velocity wheels with Industry Nine hubs, Velocity wheels with Boyd hubs, Velocity wheels with Wolf Tooth hubs

We also build with Velocity Hubs, if you want the whole wheel from one maker.

Popular hubs brands for these builds:

Want to check spoke lengths for a Velocity rim before you order? Our free spoke length calculator has the measured dimensions for it.

Velocity custom wheel questions

Can you build a wheel with a Velocity rim I already own?

Yes. Choose the supply-your-own rim option in the configurator, ship it to us, and we will lace it into a new wheel with new spokes cut to the right length for that exact rim. You pay for the parts you need and the build labor.

What tire width suits a Velocity rim?

The Velocity rims we carry are mostly 18.0-30.2mm internal, which covers most modern tire choices for their intended use. Tell the configurator what you ride and it will keep you in a sensible tire-to-rim ratio rather than leaving you to work it out.

How many spokes should a Velocity wheel have?

It depends on your weight, the terrain and the rim, not on the brand. The configurator recommends a count from your bike type and rider weight, and will not offer a count that cannot be laced to the parts you picked.

How long will my Velocity wheel take?

Build time comes down to parts availability rather than bench time. Your estimated ship date is shown in the configurator before you check out, so you know the date before you pay.

Not sure what to pick? Email info@prowheelbuilder.com (fastest) or leave a voicemail on 470-253-0929 — you will be talking to the people who build the wheels.
