Velo Orange Hubs Custom Hand Built Wheels


Custom Velo Orange Hub Wheels, Built by Hand
Pick a Velo Orange hub, choose your rim, spokes and color, and we lace and true the wheel ourselves, one at a time, in our Georgia shop.
Why build your wheel around a Velo Orange hub:
- Six Chronos hubs: front and rear in rim brake, 6-bolt disc and Boost 6-bolt disc
- Builds for road, gravel, touring, track, mountain and MTB single speed
- The builder only offers rims, spokes and nipples that fit your hub
- Laced, tensioned and trued by hand in our Georgia shop
Build your custom Velo Orange wheel for:
Start with the hub
The Velo Orange hubs we build with
Each card opens the builder with that hub already chosen. Scroll for all 6.

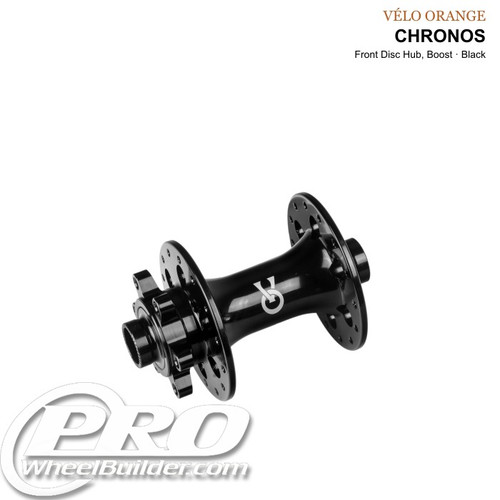

Chronos Boost Front ISO 6 Bolt Disc HubBuild with this hub →

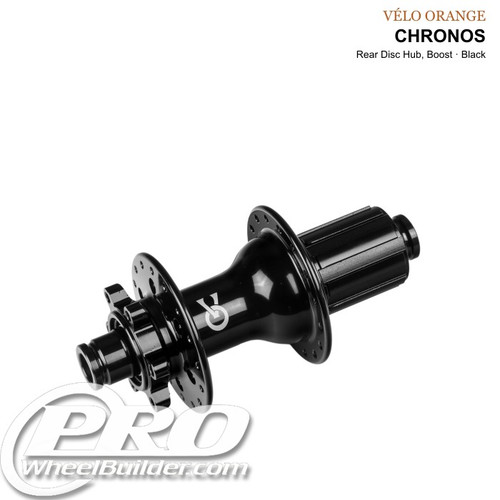

Chronos Boost Rear ISO 6 Bolt Disc HubBuild with this hub →

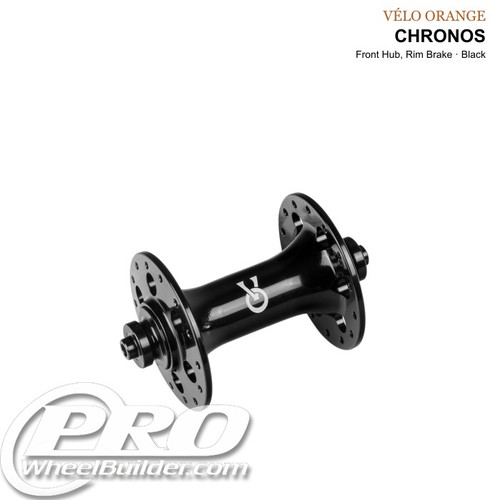

Chronos Front HubBuild with this hub →

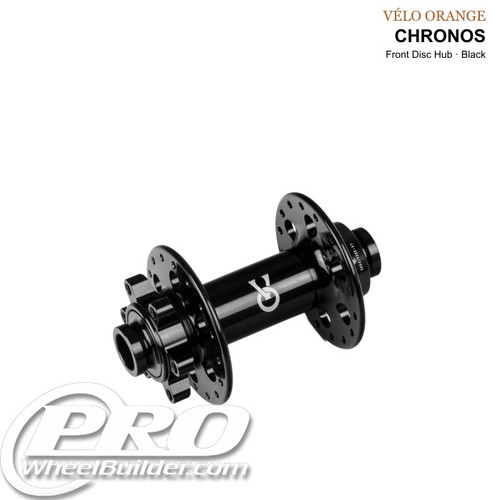

Chronos Front ISO 6 Bolt Disc HubBuild with this hub →

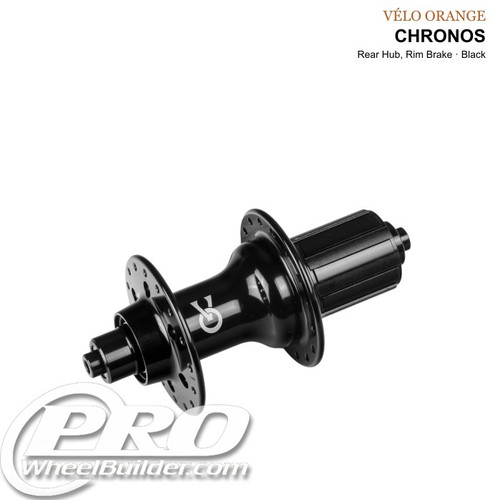

Chronos Rear HubBuild with this hub →

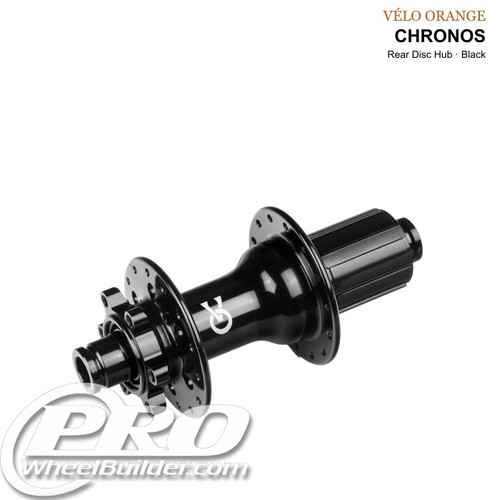

Chronos Rear ISO 6 Bolt Disc HubBuild with this hub →How it works
From parts bin to your doorstep
1Pick your parts
Choose a Velo Orange hub, then the rim, spokes and nipples. The builder only offers parts that fit together.
2We measure and prep
Rim and hub are measured here: real ERD, real flange geometry. Spokes are cut to the length your build needs.
3Laced by hand
One builder laces your wheel on the stand. No machine builds, ever.
4Tensioned and trued
Brought up to even tension, stress-relieved, trued round and true, and checked again after it settles.
More about Velo Orange custom wheels
Specs, pairings and FAQ
Custom hand built wheels with Velo Orange hubs
Velo Orange serves the touring, randonneur and classic end of the sport, where a rim or hub is chosen to last decades rather than a season.
We lace Velo Orange hubs to the rim of your choice and build the wheel by hand in our Georgia shop - tensioned evenly, trued flat and round, and stress-relieved before it ships. Spoke lengths are calculated from the measured flange geometry of your exact hub, not estimated from the model name.
Why Velo Orange hubs are different
- A ratchet in place of pawls. Chronos rears use a floating ratchet, which Velo Orange says gives good engagement and handles high torque loads. A 36-tooth ratchet is stock, and Velo Orange sells a 54-tooth replacement for more engagement on technical off-road riding.
- Service with no tools. On the Chronos rears the end caps and freehub body come off by hand, so a broken drive side spoke on a long tour does not have to end the trip.
- High flanges that make room for big bearings. The 58mm flanges leave space for large sealed cartridge bearings. Velo Orange chose this layout for long tours and commuting through grit and rain.
- End caps that change the fit. The rear disc hub runs 135mm quick release or 142mm thru axle, the rim brake rear runs 130mm or 135mm, and the disc front takes quick release, 12mm or 15mm, with the end caps included. That helps when a wheel moves to another frame or fork.
- Freehub bodies for most drivetrains. Velo Orange lists Shimano 11-speed, Micro Spline, Campagnolo N3W and SRAM XD bodies, with Micro Spline and XD limited to thru axle disc hubs. It sells replacements, so the hub can follow a drivetrain change.
The Velo Orange hubs we build with
These are J-bend hubs, which take standard J-bend spokes - the widest choice of gauge, color and material, and the easiest to source anywhere in the world if you ever break one far from home.
Axle spacing has to match your frame or fork, and it is the single most common thing people get wrong when ordering a wheel. We build Velo Orange hubs in 100mm, 110mm, 130mm, 135mm, 142mm, 148mm. If you are unsure what your frame takes, measure the inside faces of the dropouts before you order, or email us and we will work it out with you.
What to pair with a Velo Orange hub
A wheel is a system: the rim decides the tire and the braking, the hub decides the drivetrain and the axle fit, and the spokes have to suit both. Start from whichever end matters most to you and the configurator will keep the other end compatible.
Popular Velo Orange hub and rim pairings
Rims our customers build with each Velo Orange hub, led by the pairings they choose most often in our build records since 2009. Every rim listed is in the builder today in a drilling and brake type that fits; tap a hub to start that build.
- Velo Orange Chronos with Velocity Cliffhanger, Velocity Dyad, Velo Orange Enterprise, DT Swiss R 460, DT Swiss RR 511, Astral Radiant
- Velo Orange Chronos Disc with Velocity Deep V, Velocity A23, Velo Orange Voyager, Velo Orange Orbital, DT Swiss GR 531, Kinlin XR 31
Every model of both brands that fits, on one page: Velocity wheels with Velo Orange hubs, Velo Orange wheels with Velo Orange hubs, WTB wheels with Velo Orange hubs, Astral wheels with Velo Orange hubs, DT Swiss wheels with Velo Orange hubs, Kinlin wheels with Velo Orange hubs, Boyd wheels with Velo Orange hubs, Chromag wheels with Velo Orange hubs, Convergence We Are 1 wheels with Velo Orange hubs, Derby wheels with Velo Orange hubs, ENVE wheels with Velo Orange hubs, HED wheels with Velo Orange hubs, Ibis wheels with Velo Orange hubs, Industry Nine wheels with Velo Orange hubs, Nextie wheels with Velo Orange hubs, NOX Composites wheels with Velo Orange hubs, PWB wheels with Velo Orange hubs, Race Face wheels with Velo Orange hubs, Reserve wheels with Velo Orange hubs, Spank wheels with Velo Orange hubs, Stan's NoTubes wheels with Velo Orange hubs, Surly wheels with Velo Orange hubs
We also build with Velo Orange Rims, if you want the whole wheel from one maker.
Popular rims brands for these builds:
- Astral Rims
- Boyd Rims
- Convergence We Are 1 Rims
- DT Swiss Rims
- Derby Rims
- ENVE Composites Rims
- H Plus Son Rims
- HED Rims
- IBIS Rims
- Industry Nine Rims
- Kinlin Rims
- Mavic Rims
- NOX Composite Rims
- Nextie Rims
- PWB Rims
- Race Face Rims
- Reserve Rims
- Spank Rims
- Stan's No Tube Rims
- Velo Orange Rims
- Velocity Rims
- WTB Rims
Want to check spoke lengths for a Velo Orange hub before you order? Our free spoke length calculator has the measured dimensions for it.
Velo Orange custom wheel questions
Can you build a wheel with a Velo Orange hub I already own?
Yes. Choose the supply-your-own hub option in the configurator, ship it to us, and we will lace it into a new wheel with new spokes cut to the right length for that exact hub. You pay for the parts you need and the build labor.
Which axle spacing do I need?
Whatever your frame or fork takes - we build Velo Orange hubs in 100mm, 110mm, 130mm, 135mm, 142mm, 148mm. Measure between the inside faces of your dropouts if you are unsure, or email us and we will work it out from your bike.
Can a Velo Orange hub be relaced into a new rim later?
Yes, and it is one of the better arguments for a quality hub. When the rim wears out or cracks, send us the wheel and we will build the hub into a new rim with new spokes. Spokes are not reused - they have taken a set at the old rim's dimensions.
How long will my Velo Orange wheel take?
Build time comes down to parts availability rather than bench time. Your estimated ship date is shown in the configurator before you check out, so you know the date before you pay.
Not sure what to pick? Email info@prowheelbuilder.com (fastest) or leave a voicemail on 470-253-0929 — you will be talking to the people who build the wheels.
