Son Dynamo Hubs Custom Hand Built Wheels


Custom SON Hub Wheels, Built by Hand
Pick a SON hub, choose your rim, spokes and color, and we lace and true the wheel ourselves, one at a time, in our Georgia shop.
Why build your wheel around a SON hub:
- Eight SON hubs to start from: the 28 and Delux, in disc, fat bike and Wide Body
- Builds for road, gravel, touring, track, mountain, single-speed and fat or plus bikes
- Rim and hub are measured here for real ERD and real flange geometry
- Laced and trued one at a time in our Georgia shop
Build your custom SON wheel for:
Start with the hub
The SON hubs we build with
Each card opens the builder with that hub already chosen. Scroll for all 8.

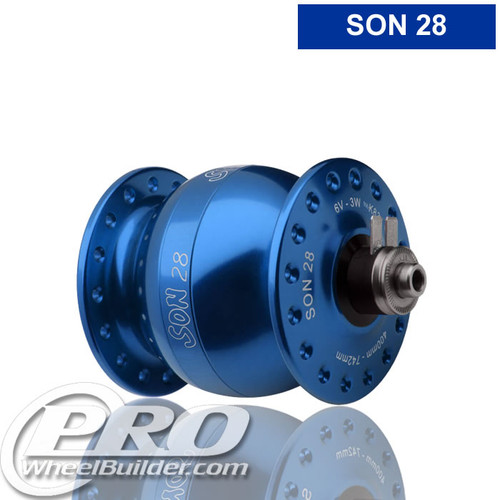

28 HubBuild with this hub →

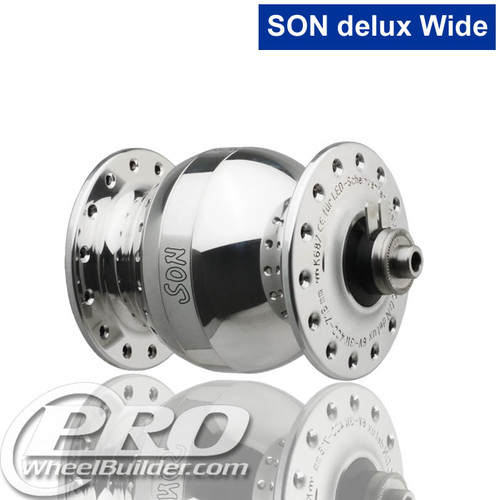

Delux Wide Body HubBuild with this hub →

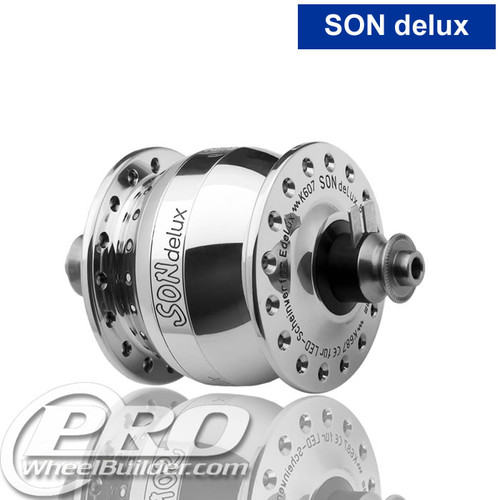

Delux HubBuild with this hub →

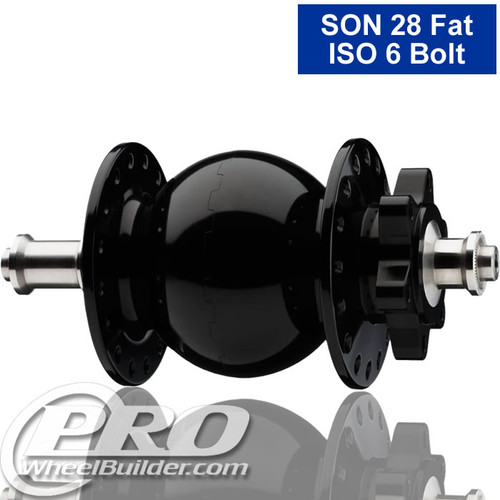

28 Fat Bike 6 Bolt ISO Disc Black HubBuild with this hub →

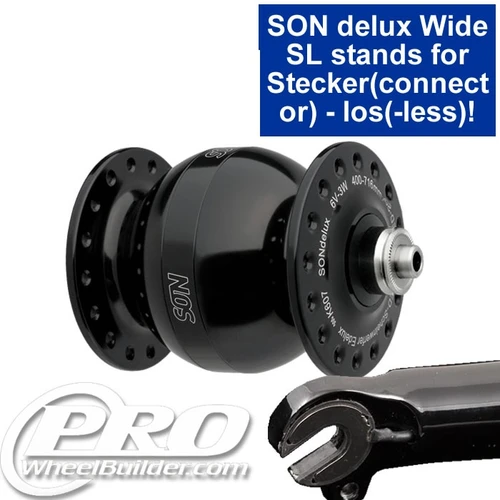

Delux Wide Body SL HubBuild with this hub →

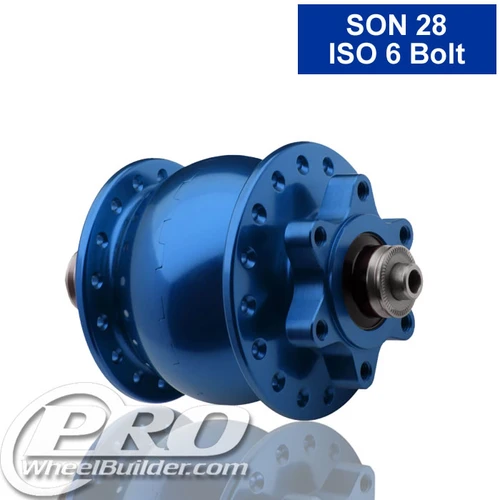

28 6 Bolt ISO Disc HubBuild with this hub →

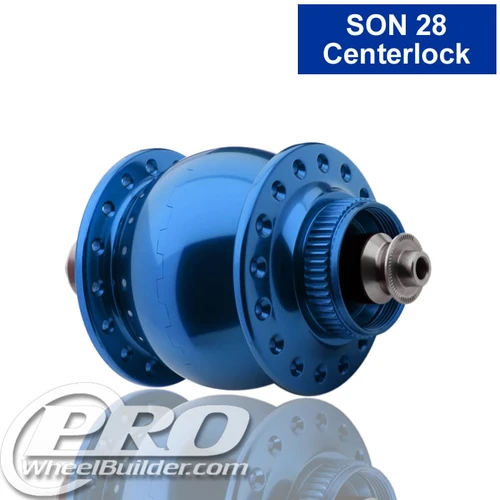

28 Centerlock Disc HubBuild with this hub →

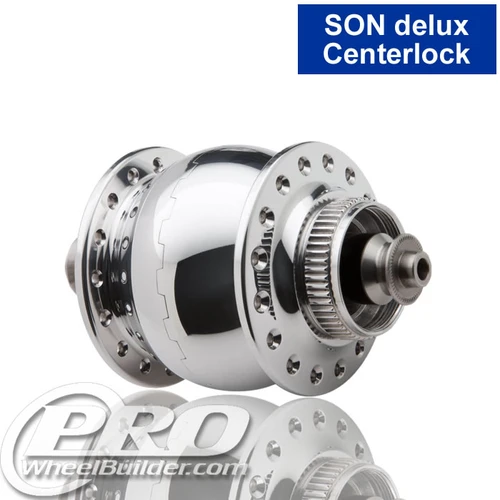

Delux Centerlock Disc HubBuild with this hub →How it works
From parts bin to your doorstep
1Pick your parts
Choose a SON hub, then the rim, spokes and nipples. The builder only offers parts that fit together.
2We measure and prep
Rim and hub are measured here: real ERD, real flange geometry. Spokes are cut to the length your build needs.
3Laced by hand
One builder laces your wheel on the stand. No machine builds, ever.
4Tensioned and trued
Brought up to even tension, stress-relieved, trued round and true, and checked again after it settles.
More about SON custom wheels
Specs, pairings and FAQ
Custom hand built wheels with Son Dynamo hubs
SON dynamo hubs are made by Schmidt in Tubingen, Germany, and are the reference for riders who want light without batteries on a tourer or randonneur build.
We lace Son Dynamo hubs to the rim of your choice and build the wheel by hand in our Georgia shop - tensioned evenly, trued flat and round, and stress-relieved before it ships. Spoke lengths are calculated from the measured flange geometry of your exact hub, not estimated from the model name.
Why SON hubs are different
- A generator with its coil in the center. SON uses a claw-pole generator with the coil placed centrally and carefully made sheet metal parts, which it says keeps losses low when the lights are off. It works without gears or contact, so SON says the generator itself does not wear.
- Pressure compensation to keep water out. SON credits this system, which ends in the axle bore, for its protection against water getting in. It is why SON asks you not to grease the skewer shaft and to keep strong jets of water off the hub.
- Bearings that need nothing from you. SON uses SKF ball bearings sealed on both sides and lubricated for life, which it says run many tens of thousands of kilometers with no adjustment. All SON hubs carry a five-year warranty.
- A generator tuned to how you ride. The SON 28 is SON's all-purpose choice, with strong output even at low speed, including for charging devices. The SONdelux is lighter with lower mechanical resistance for fast riders and small wheels, and it gives up some output below 20 km/h.
- Wider flanges on the Wide Body. The standard SONdelux has 50mm flange spacing and the wide body has 68mm, which SON says makes particularly stiff and stable wheels. The wider base gives the spokes a better angle to the rim.
- SL hubs with no wires. On SL models the contact areas on the hub and fork make the electrical connection, so nothing plugs into the hub. It needs a fork specially made for it, since SON says an ordinary fork cannot be retrofitted.
The Son Dynamo hubs we build with
These are J-bend hubs, which take standard J-bend spokes - the widest choice of gauge, color and material, and the easiest to source anywhere in the world if you ever break one far from home.
Axle spacing has to match your frame or fork, and it is the single most common thing people get wrong when ordering a wheel. We build Son Dynamo hubs in 100mm, 110mm, 135mm, 150mm. If you are unsure what your frame takes, measure the inside faces of the dropouts before you order, or email us and we will work it out with you.
What to pair with a Son Dynamo hub
A wheel is a system: the rim decides the tire and the braking, the hub decides the drivetrain and the axle fit, and the spokes have to suit both. Start from whichever end matters most to you and the configurator will keep the other end compatible.
Popular SON hub and rim pairings
Rims our customers build with each SON hub, led by the pairings they choose most often in our build records since 2009. Every rim listed is in the builder today in a drilling and brake type that fits; tap a hub to start that build.
- SON 28 with Velocity Cliffhanger, Velocity Dyad, Astral Leviathan Touring, HED Belgium R, Velo Orange Enterprise, DT Swiss R 460
- SON Delux Wide Body with Velocity Quill, Velocity Atlas, DT Swiss RR 411, DT Swiss RR 511, Astral Radiant, Astral Solstice
- SON Delux with Velocity Quill, Velocity Cliffhanger, HED Belgium R, Velo Orange Enterprise, Astral Veil 3 Carbon, Astral Veil 4 Carbon
- SON 28 Fat Bike with WTB KOM Tough TCS 2.0 CVX I 35, DT Swiss BR 710, HED B.H.D. Carbon, Race Face ARC Offset 40, WTB KOM Light TCS I 76, HED B.A.D. Alloy
- SON Delux Wide Body SL with Velocity Quill, Velocity Deep V, NOX Composites Falkor 36R, NOX Composites Falkor 55R, DT Swiss R 460, DT Swiss RR 511
- SON 28 Disc with Velocity A23, Velocity Chukker, DT Swiss GR 531, DT Swiss G 540, WTB KOM Tough TCS 2.0 CVX I 25, WTB KOM Light TCS I 23
- SON Delux Disc with Velocity Aileron, Velocity Major Tom, DT Swiss RR 521, DT Swiss R 470, WTB KOM Light TCS 2.0 CVX I 25, HED Belgium G
Every model of both brands that fits, on one page: Velocity wheels with SON hubs, DT Swiss wheels with SON hubs, WTB wheels with SON hubs, HED wheels with SON hubs, Astral wheels with SON hubs, Stan's NoTubes wheels with SON hubs, Velo Orange wheels with SON hubs, Boyd wheels with SON hubs, ENVE wheels with SON hubs, NOX Composites wheels with SON hubs, Ibis wheels with SON hubs, Derby wheels with SON hubs, Kinlin wheels with SON hubs, Race Face wheels with SON hubs, Convergence We Are 1 wheels with SON hubs, PWB wheels with SON hubs, Spank wheels with SON hubs, Chromag wheels with SON hubs, Industry Nine wheels with SON hubs, Nextie wheels with SON hubs, Reserve wheels with SON hubs, Surly wheels with SON hubs, Teravail wheels with SON hubs
Popular rims brands for these builds:
- Astral Rims
- Boyd Rims
- Chromag Rims
- Convergence We Are 1 Rims
- Derby Rims
- DT Swiss Rims
- ENVE Composites Rims
- H Plus Son Rims
- HED Rims
- IBIS Rims
- Industry Nine Rims
- Kinlin Rims
- Mavic Rims
- Nextie Rims
- NOX Composite Rims
- PWB Rims
- Race Face Rims
- Reserve Rims
- Spank Rims
- Stan's No Tube Rims
- Surly Rims
- Teravail Rims
- Velo Orange Rims
- Velocity Rims
- WTB Rims
Want to check spoke lengths for a Son Dynamo hub before you order? Our free spoke length calculator has the measured dimensions for it.
Son Dynamo custom wheel questions
Can you build a wheel with a Son Dynamo hub I already own?
Yes. Choose the supply-your-own hub option in the configurator, ship it to us, and we will lace it into a new wheel with new spokes cut to the right length for that exact hub. You pay for the parts you need and the build labor.
Which axle spacing do I need?
Whatever your frame or fork takes - we build Son Dynamo hubs in 100mm, 110mm, 135mm, 150mm. Measure between the inside faces of your dropouts if you are unsure, or email us and we will work it out from your bike.
Can a Son Dynamo hub be relaced into a new rim later?
Yes, and it is one of the better arguments for a quality hub. When the rim wears out or cracks, send us the wheel and we will build the hub into a new rim with new spokes. Spokes are not reused - they have taken a set at the old rim's dimensions.
How long will my Son Dynamo wheel take?
Build time comes down to parts availability rather than bench time. Your estimated ship date is shown in the configurator before you check out, so you know the date before you pay.
Not sure what to pick? Email info@prowheelbuilder.com (fastest) or leave a voicemail on 470-253-0929 — you will be talking to the people who build the wheels.
Not sure which hub or rim?
Tell the Build Assistant how you ride and what you want to spend, and it ranks complete builds for you.
Open the Build Assistant →
