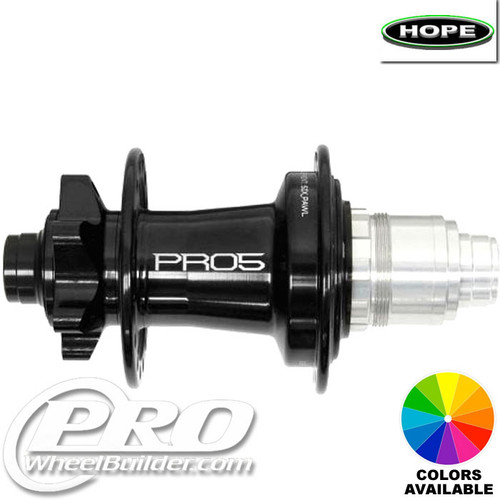

Hope Pro 5 Rear ISO 6 Bolt Disc Hub
The Hope Pro 5 is the current version of the hub Hope has been machining in Barnoldswick, England for decades, and it is one of the most complete mountain and gravel hubs made. The Pro 5 has 108 points of engagement from an offset six-pawl freehub, with three pawls engaged at any moment, a new zero-drag labyrinth seal between freehub and shell, sealed stainless cartridge bearings, and end caps for every axle standard from 12 x 135 through 12 x 148 Boost to 12 x 157 Superboost, with centerlock or 6-bolt rotor mounts, in 24 through 36 hole. The rear weighs about 313 to 326 grams depending on driver. This page covers the Hope Pro 5 Rear ISO 6 Bolt Disc Hub.
The Pro 5 comes from us only as a finished wheel: pick the rim, spokes and nipples, and we lace, tension and true it by hand in Georgia before it ships.
Design and construction
Hope's freehub uses six pawls in two offset groups of three on a 54-tooth ring, so three pawls engage at once and the other three sit half a tooth behind, which doubles the engagement points to 108 and spreads the load over three pawls; 3.3 degrees of pickup is quick enough for technical climbing and the freehub is loud in the way Hope hubs are known for. The Pro 5's labyrinth seal replaced the rubber lip seal of the Pro 4, which cut coasting drag to almost nothing while keeping mud out, and the bearings are sealed stainless cartridges in common sizes.
The shell is machined from aluminum bar in Barnoldswick with J-bend flanges and anodized in Hope's colors: black, silver, red, blue, orange and purple among them. Freehubs swap between HG, XD and Micro Spline, and Hope stocks every spare for every hub it has ever made.
How it rides
A Pro 5 engages quickly, coasts freely and makes the noise Hope riders love. The bearings roll for years, the seals keep British-grade mud out, and the hub takes trail, enduro, downhill and e-bike use; Hope rates the Pro 5 for e-MTBs. It is the hub we suggest for a rider who wants instant-enough engagement, colors and a reputation for surviving anything at a price below the boutique American hubs.
For road and gravel Hope makes the RS4; for fat bikes the Fatsno.
Specifications
| Position | Rear |
|---|---|
| Axle options | QR 5x135mm Rear, QR 5x141mm Boost Rear, Thru Axle 10x135mm Rear, Thru Axle 12x135mm Rear, Thru Axle 12x142mm Rear, Thru Axle 12x148mm Boost Rear, Thru Axle 12x150mm Rear, Thru Axle 12x157mm Super Boost Rear |
| Driver bodies | Shimano HG 8,9,10,11 & Road 12spd, Shimano HG 8,9,10,11 & Road 12spd (Steel), Shimano Micro Spline 12spd, SRAM XD 10,11 & MTB 12spd, SRAM XDR 10,11 & Road & MTB 12spd |
| Drillings | 24h, 28h, 32h, 36h |
| Spoke head | J-bend |
| Brake | 6-bolt disc |
| Left flange diameter | 57 mm |
| Right flange diameter | 59 mm |
| Spoke hole diameter | 2.6 mm |
| Weight | 305g |
| Material | Aluminum |
| Finishes | black, blue, orange, purple, red, silver, smoke |
About this listing
What sets this listing apart from the other Pro 5 versions: 6-bolt rotor mount, QR 5x135mm, QR 5x141mm Boost, Thru Axle 10x135mm, Thru Axle 12x135mm and more, 24h, 28h, 32h, 36h drilling, about 305g, in black, blue, orange, purple, red, silver, smoke. Pick the one that matches your frame and rotor and the rest of the hub is identical.
This is the 6-bolt Pro 5: the rotor bolts to a flange with six T25 bolts, which is the mount most mountain and gravel rotors still use and the easiest to find a rotor for on the road. If you run centerlock rotors, choose the centerlock version of the same hub instead.
Sizes, fit and compatibility
The Hope Pro 5 Rear ISO 6 Bolt Disc Hub comes in the drillings listed on this page with the axle, rotor and driver options shown in the configurator. J-bend spokes in any gauge; we build most Pro 5 wheels with Sapim Race, D-Light or CX-Sprint spokes or DT Competition and brass nipples.
It pairs naturally with DT Swiss, Stan's, WTB, Race Face, Reserve, We Are One, Nox and ENVE rims that match its drilling. Pick your bike type and weight in the configurator and it recommends a spoke count and lacing pattern.
Build it with us
We build this hub to order. Open the Custom Wheel Program with the Hope Pro 5 Rear ISO 6 Bolt Disc Hub already selected and pick the parts around it; it is offered for gravel and road disc, mountain bike and fat bike builds, and the configurator will not let you assemble a combination we would not build.
Testing, standards and warranty at Hope
Hope Technology states that since 1989 it has been "designing, testing and manufacturing virtually all products in-house at the factory in Barnoldswick, United Kingdom", and that "Virtually everything we do is developed, prototyped, machined, anodized and assembled on site." Pro 5 hub shells are "Machined from forged 2014 T6 Aluminum billet" with "Sealed stainless Steel cartridge bearings throughout", and every hub is "Fully serviceable and rebuildable with simple tools." Hope's About page cites almost 100 staff and 55 CNC machines; a June 2025 factory report counted 80 CNC machines and about 140 employees and stated "Random components are plucked from production and tested in the company's in-house fatigue and destructive testing facilities." A Renishaw case study quotes Hope's operations manager: "We take components off the line on a regular basis for sample measurement on the CMM", with output of 70,000 wheel hubs a year. Hope publishes no ISO 4210 or salt-spray figures.
the Pro 5 freehub uses an offset six-pawl design with engagement increased from 44 to 108 points, "3 pawls are engaged at any time", "Wire cut pawls from high strength steel", a zero-drag labyrinth seal and a step-down axle for a stiffer freehub; the e-bike version uses a stainless steel driver.
Hope's videos
Inside the Hope shop
Certifications
- Made in UK (Barnoldswick, Lancashire) — Hope states virtually all products are designed, tested and manufactured in-house at Hope Mill, Barnoldswick; "virtually all Hope products are designed and manufactured in the UK" (Ian Weatherill, 2024) (source)
- 2-year component warranty — Components (excluding bearings) warrantied 2 years from purchase to the original customer (source)
Sources on Hope's site:
- Hope Tech - Made in Barnoldswick, England (home)
- Hope Technology - About us
- Hope Technology - Sustainability
- Hope Technology - The all New Pro 5 Hub
- Hope Pro 5 100mm Front hub (product page)
The figures, certificates and media above are Hope's own. ProWheelBuilder does not run these tests; our part is the wheel we build on the hub.
Building it at ProWheelBuilder
Hope makes the Pro 5 in Barnoldswick, England; ProWheelBuilder is an independent custom wheel builder in Georgia and not the manufacturer. We measure the rim before we cut a spoke, bring the wheel up in three or four rounds with a gauge, stress-relieve it between rounds and true it last, then tape it and fit a valve if you want it tubeless.
Only compatible hubs and spokes appear in the configurator, impossible combinations are struck through rather than hidden, and the price is live.
Warranty
Manufacturer's warranty. Hope warrants this product against defects in materials and workmanship. The duration, conditions and claim process are set by Hope and can change without notice, so ask us and we will confirm the current terms before you buy.
ProWheelBuilder. Built into a wheel by us, this part is covered by our own one-year wheel warranty on top of the maker's. For a year we replace broken spokes whatever caused them, and we cover the labor on the wheel - truing, re-tensioning, a rebuild if it needs one. If a rim or hub fails and its maker covers it, we run that claim for you; if the maker says no, you get an eligible replacement rim or hub at 25% off retail. You pay the shipping each way. Wheels built from parts you send us are excluded.
Full terms are on our Policies & Warranty page.
Pro 5 Rear ISO 6 Bolt Disc Hub questions
Will my rotors fit this hub?
This is the 6-bolt version: any ISO 6-bolt rotor bolts straight on with six T25 bolts, which is still the most common and the easiest rotor to replace anywhere. Centerlock rotors do not fit it - for those, take the centerlock version of the same hub, listed separately.
What changed from the Pro 4 to the Pro 5?
Engagement went from 44 to 108 points with the offset six-pawl freehub, the rubber lip seal became a zero-drag labyrinth seal, and the axle and bearing layout were updated.
Which freehub bodies fit the Pro 5?
Shimano HG, SRAM XD and Shimano Micro Spline, selectable in the configurator.
Is the Pro 5 e-bike rated?
Yes. Hope rates the Pro 5 for e-MTB use; tell the configurator it is an e-bike and it picks the spokes.
Is the Pro 5 loud?
Yes, in the way Hope hubs always have been. If you want silence, look at an Onyx.
Which axle spacing does it fit?
QR 5x135mm Rear or QR 5x141mm Boost Rear or Thru Axle 10x135mm Rear or Thru Axle 12x135mm Rear or Thru Axle 12x142mm Rear or Thru Axle 12x148mm Boost Rear or Thru Axle 12x150mm Rear or Thru Axle 12x157mm Super Boost Rear. Measure between the inside faces of your dropouts if you are unsure, or text us.
Does it need special spokes?
No. It takes standard J-bend spokes, which the configurator offers in every gauge and finish we stock.
