DT Swiss Hubs Custom Hand Built Wheels

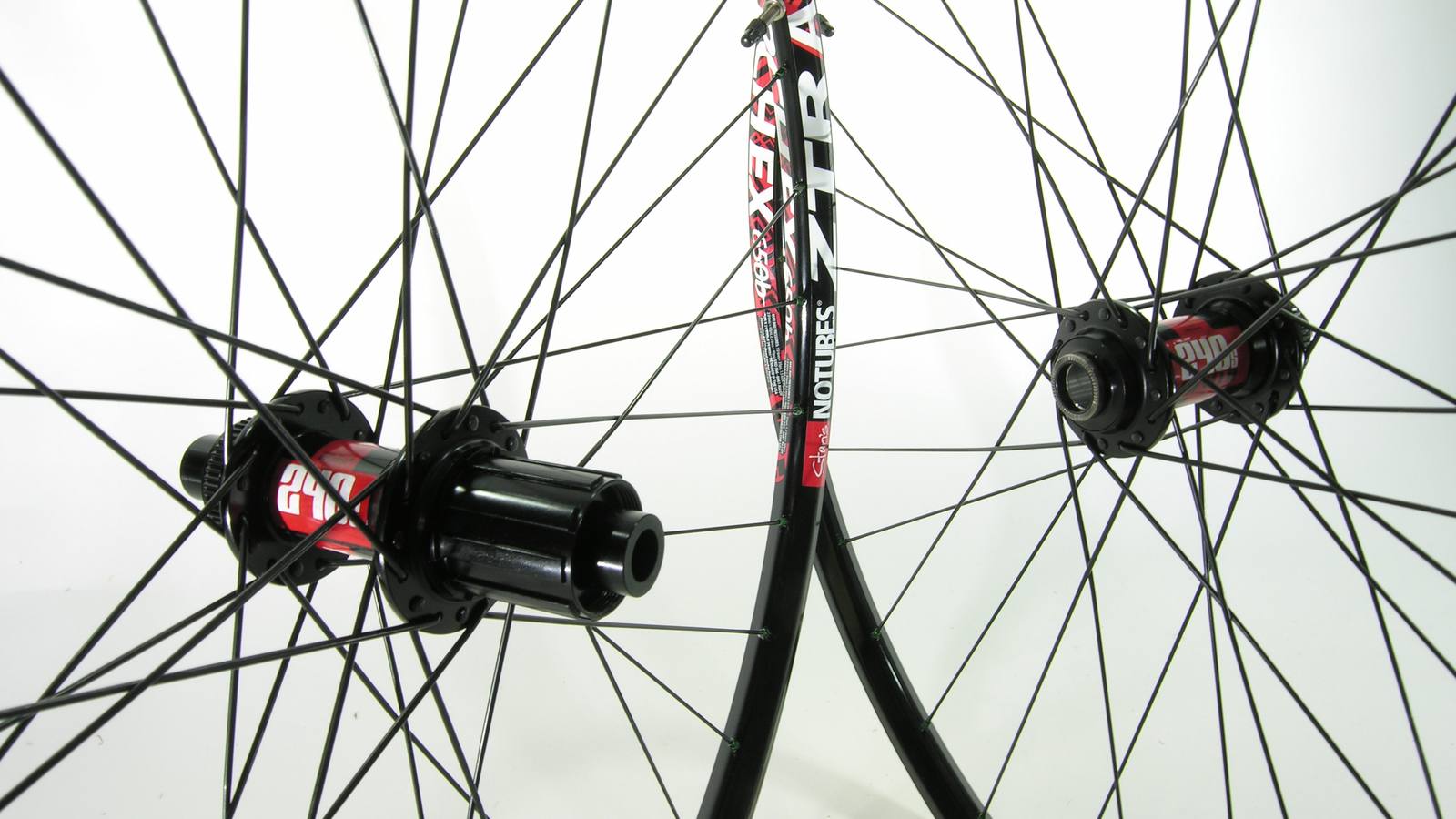

Custom wheel built by ProWheelBuilder: DT 240 Centerlock Black hubs, Stan's Arch EX Black rims

Custom DT Swiss Hub Wheels, Built by Hand

Pick a DT Swiss hub, choose your rim, spokes and color, and we lace and true the wheel ourselves, one at a time, in our Georgia shop.

Why build your wheel around a DT Swiss hub:

  • Choose from 28 DT Swiss hubs, each card opening the builder with that hub chosen
  • Builds for road, gravel, touring, mountain and fat tire or plus bikes
  • You pick the rim, spokes and color; our gallery shows 240 and 350 builds
  • Laced and trued one at a time in our Georgia shop
Read more

Build your custom DT Swiss wheel for:

From our truing stand

DT Swiss wheels we’ve built

Every one of these was laced and trued in our shop.

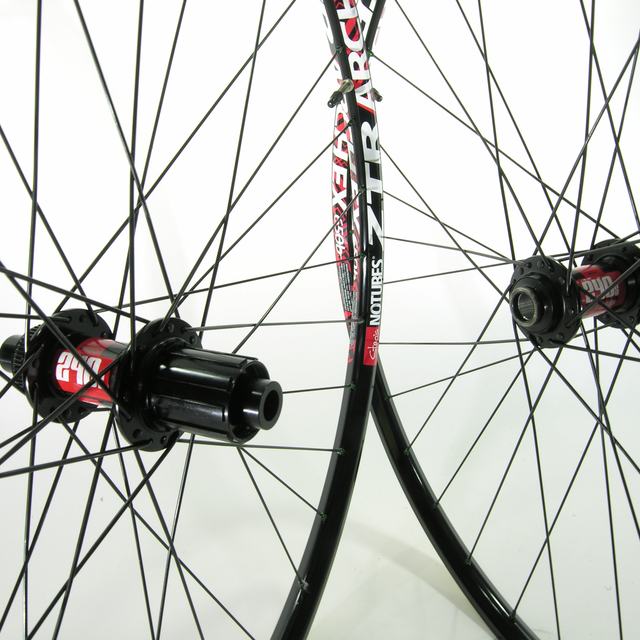

Custom wheel: DT 240 Centerlock Black hubs, Stan's Arch EX Black rims, DT Competition Black spokes
DT 240 Centerlock Black hubsStan's Arch EX Black rims · DT Competition Black spokes

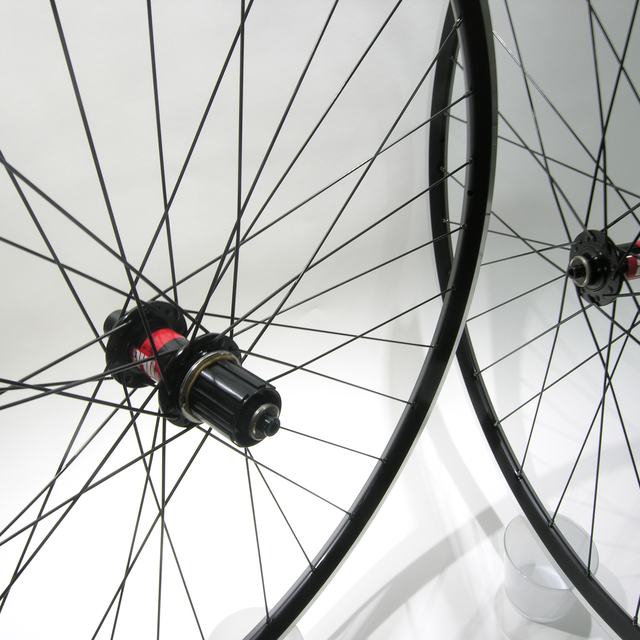

Custom wheel: DT 240 Black hubs, Velocity A23 MSW Black rims, DT Competition Black spokes
DT 240 Black hubsVelocity A23 MSW Black rims · DT Competition Black spokes
Custom wheel: DT 350 6 Bolt Black hubs, Velocity Blunt Black rims, PWB Blue spokes
DT 350 6 Bolt Black hubsVelocity Blunt Black rims · PWB Blue spokes

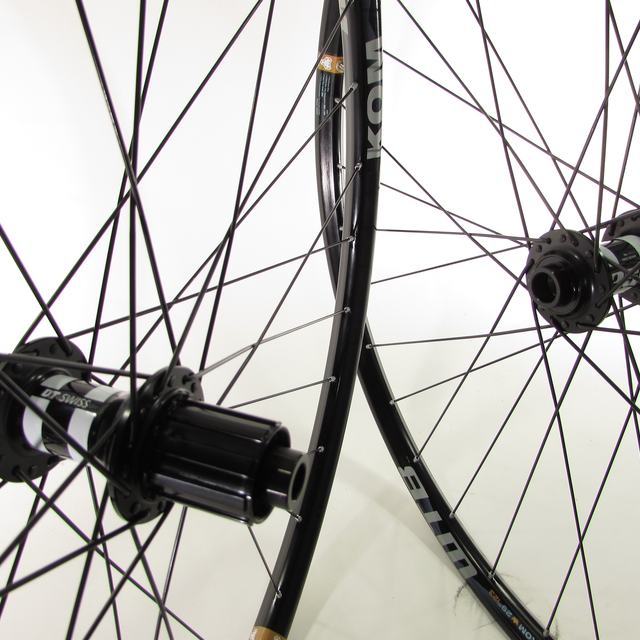

Custom wheel: DT 350 Center Lock Disc Black hubs, WTB KOM Black rims, DT Competition Black spokes
DT 350 Center Lock Disc Black hubsWTB KOM Black rims · DT Competition Black spokes

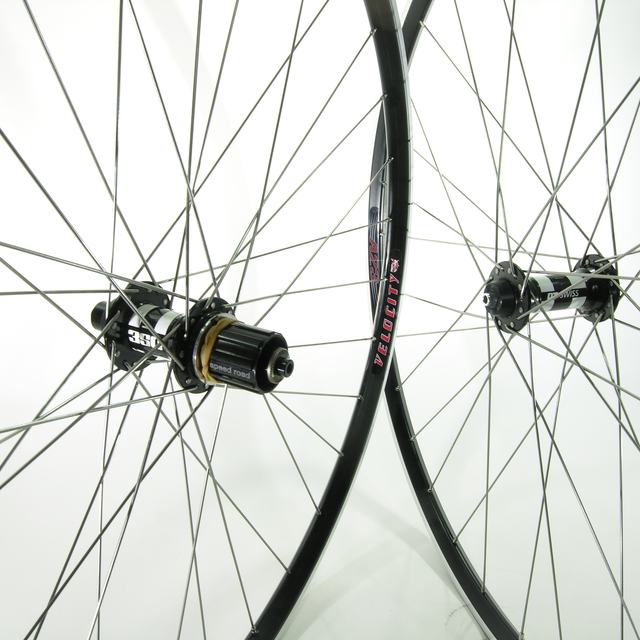

Custom wheel: DT 350 Black hubs, Velocity A23 MSW Black rims, Sapim Leader Silver spokes
DT 350 Black hubsVelocity A23 MSW Black rims · Sapim Leader Silver spokes
Custom wheel: DT 350 Centerlock Black hubs, WTB I25 Black rims, DT Competition Black spokes
DT 350 Centerlock Black hubsWTB I25 Black rims · DT Competition Black spokes

Start with the hub

The DT Swiss hubs we build with

Each card opens the builder with that hub already chosen. Scroll for all 28.

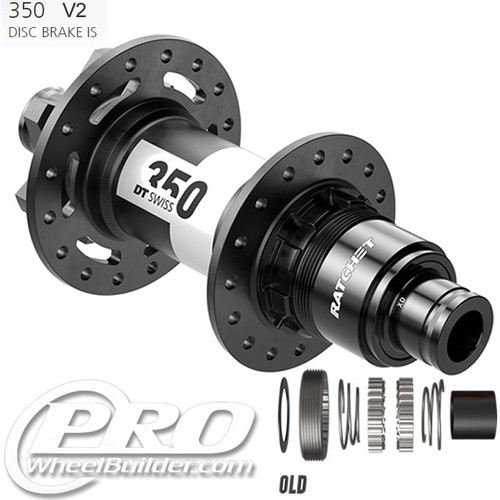

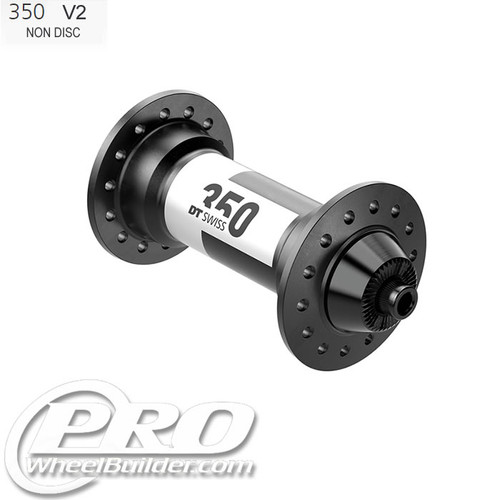

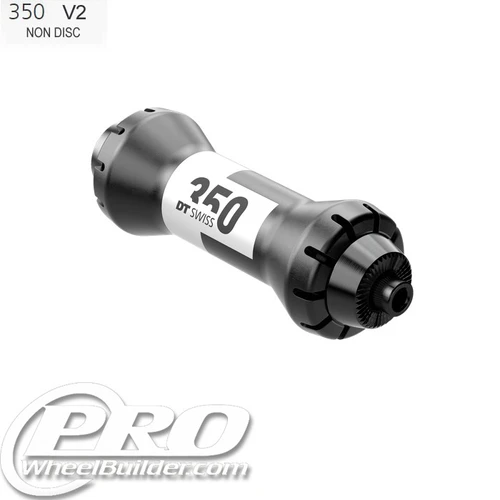

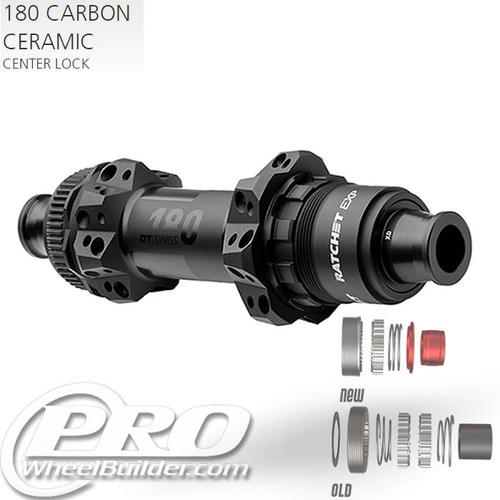

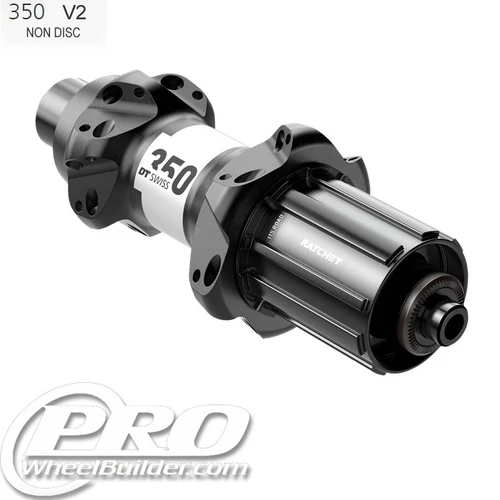

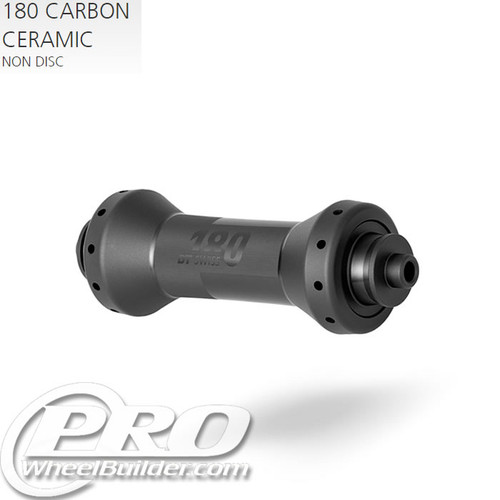

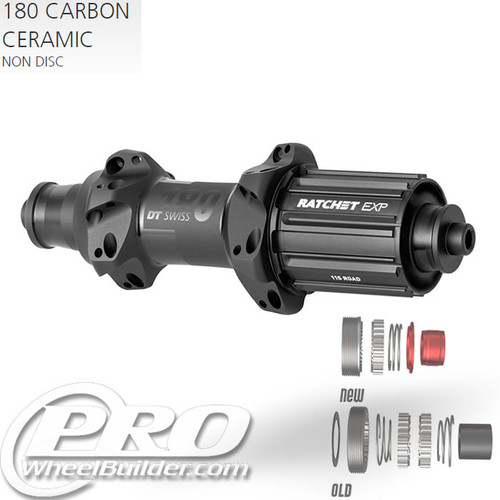

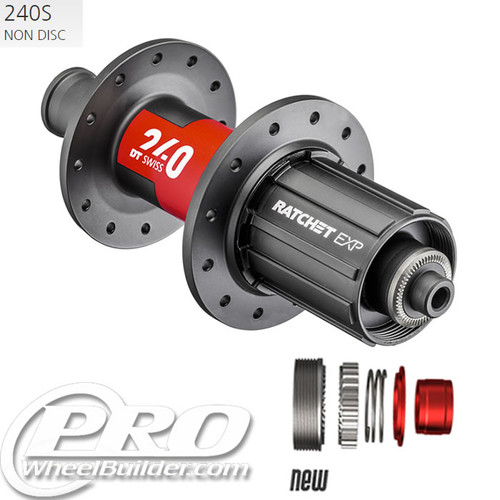

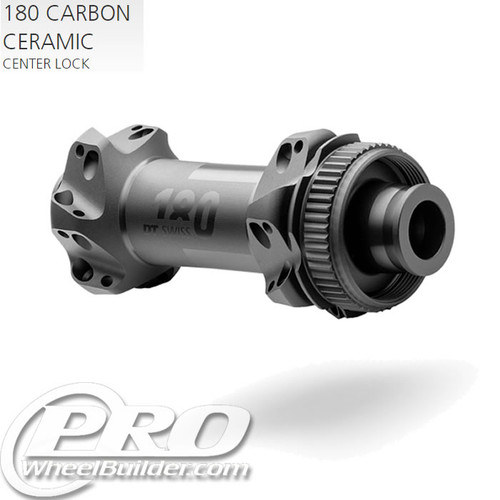

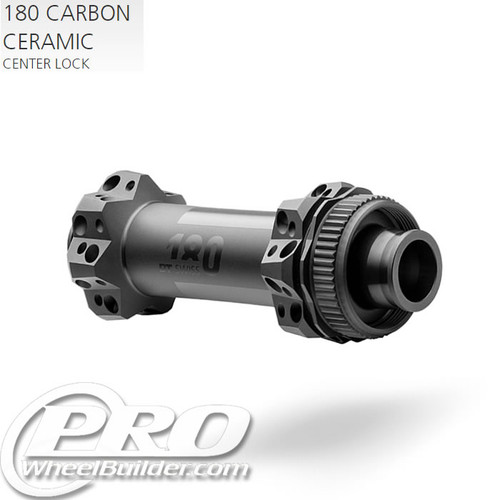

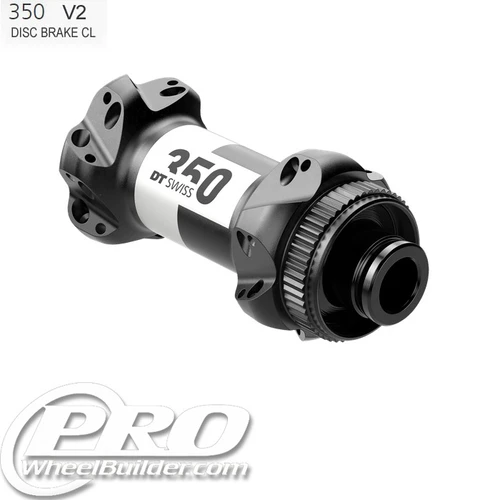

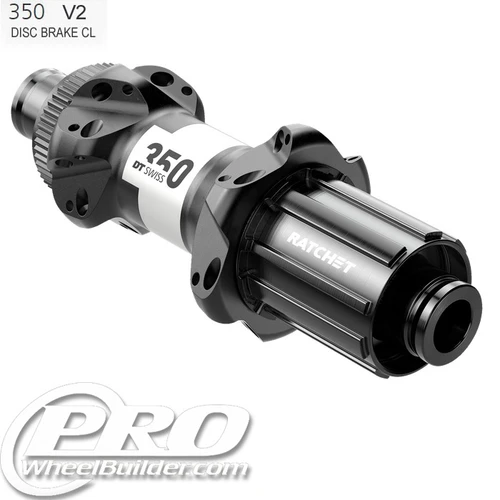

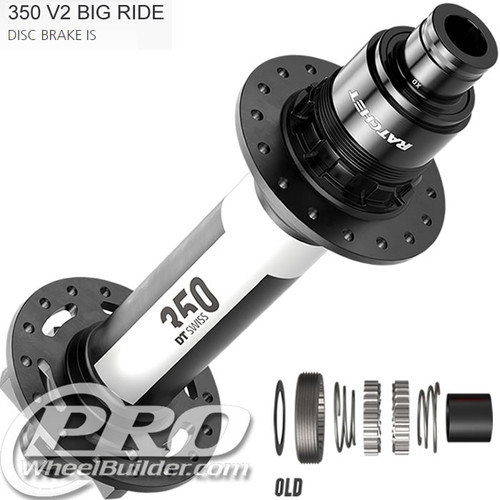

DT Swiss 350 2021 + Front Black Hub350 2021 + Front Black HubBuild with this hub →DT Swiss 350 2021 + Rear Black Hub350 2021 + Rear Black HubBuild with this hub →DT Swiss 240 2020 + Front Black Hub240 2020 + Front Black HubBuild with this hub →DT Swiss 240 2020 + Rear Black Hub240 2020 + Rear Black HubBuild with this hub →DT Swiss 180 Straight Pull Front Hub180 Straight Pull Front HubBuild with this hub →DT Swiss 180 Straight Pull Rear Hub180 Straight Pull Rear HubBuild with this hub →DT Swiss 350 Big Ride 2021 + Rear Black ISO 6 Bolt Disc Hub350 Big Ride 2021 + Rear Black ISO 6 Bolt Disc HubBuild with this hub →DT Swiss 350 2021 + Straight Pull Front Black Hub350 2021 + Straight Pull Front Black HubBuild with this hub →DT Swiss 350 2021 + Straight Pull Rear Black Hub350 2021 + Straight Pull Rear Black HubBuild with this hub →DT Swiss 180 Straight Pull Boost Front Centerlock Disc Hub180 Straight Pull Boost Front Centerlock Disc HubBuild with this hub →DT Swiss 180 Straight Pull Boost Rear Centerlock Disc Hub180 Straight Pull Boost Rear Centerlock Disc HubBuild with this hub →DT Swiss 180 Straight Pull Front Centerlock Disc Hub180 Straight Pull Front Centerlock Disc HubBuild with this hub →DT Swiss 180 Straight Pull Rear Centerlock Disc Hub180 Straight Pull Rear Centerlock Disc HubBuild with this hub →DT Swiss 240 2020 + Front Black Centerlock Disc Hub240 2020 + Front Black Centerlock Disc HubBuild with this hub →DT Swiss 240 2020 + Front Black ISO 6 Bolt Disc Hub240 2020 + Front Black ISO 6 Bolt Disc HubBuild with this hub →DT Swiss 240 2020 + Rear Black Centerlock Disc Hub240 2020 + Rear Black Centerlock Disc HubBuild with this hub →DT Swiss 240 2020 + Rear Black ISO 6 Bolt Disc Hub240 2020 + Rear Black ISO 6 Bolt Disc HubBuild with this hub →DT Swiss 240 2020 + Straight Pull Front Black Centerlock Disc Hub240 2020 + Straight Pull Front Black Centerlock Disc HubBuild with this hub →DT Swiss 240 2020 + Straight Pull Rear Black Centerlock Disc Hub240 2020 + Straight Pull Rear Black Centerlock Disc HubBuild with this hub →DT Swiss 240 2020 + Straight Pull Rear Black Hub240 2020 + Straight Pull Rear Black HubBuild with this hub →DT Swiss 240 2020 + Straight Pull Rear Black ISO 6 Bolt Disc Hub240 2020 + Straight Pull Rear Black ISO 6 Bolt Disc HubBuild with this hub →DT Swiss 350 2021 + Front Black Centerlock Disc Hub350 2021 + Front Black Centerlock Disc HubBuild with this hub →DT Swiss 350 2021 + Front Black ISO 6 Bolt Disc Hub350 2021 + Front Black ISO 6 Bolt Disc HubBuild with this hub →DT Swiss 350 2021 + Rear Black Centerlock Disc Hub350 2021 + Rear Black Centerlock Disc HubBuild with this hub →DT Swiss 350 2021 + Rear Black ISO 6 Bolt Disc Hub350 2021 + Rear Black ISO 6 Bolt Disc HubBuild with this hub →DT Swiss 350 2021 + Straight Pull Front Black Centerlock Disc Hub350 2021 + Straight Pull Front Black Centerlock Disc HubBuild with this hub →DT Swiss 350 2021 + Straight Pull Rear Black Centerlock Disc Hub350 2021 + Straight Pull Rear Black Centerlock Disc HubBuild with this hub →DT Swiss 350 Front Black ISO 6 Bolt Disc Hub350 Front Black ISO 6 Bolt Disc HubBuild with this hub →

See all DT Swiss hubs →

How it works

From parts bin to your doorstep

  1. Pick your parts1

    Pick your parts

    Choose a DT Swiss hub, then the rim, spokes and nipples. The builder only offers parts that fit together.

  2. We measure and prep2

    We measure and prep

    Rim and hub are measured here: real ERD, real flange geometry. Spokes are cut to the length your build needs.

  3. Laced by hand3

    Laced by hand

    One builder laces your wheel on the stand. No machine builds, ever.

  4. Tensioned and trued4

    Tensioned and trued

    Brought up to even tension, stress-relieved, trued round and true, and checked again after it settles.

More about DT Swiss custom wheels

Specs, pairings and FAQ

Custom hand built wheels with DT Swiss hubs

DT Swiss grew out of a 1994 management buyout from the Biel, Switzerland wire maker Vereinigte Drahtwerke, and its ratchet-driven freehubs and butted spokes are close to a default in the wheelbuilding trade.

We lace DT Swiss hubs to the rim of your choice and build the wheel by hand in our Georgia shop - tensioned evenly, trued flat and round, and stress-relieved before it ships. Spoke lengths are calculated from the measured flange geometry of your exact hub, not estimated from the model name.

Why DT Swiss hubs are different

  • Star ratchets instead of pawls. Facing toothed rings take the drive, and all their teeth engage at the same moment. DT Swiss says a pawl has only a small contact area, while the whole face of its ratchet engages, and it credits the smaller point loads for these hubs' reliability.
  • Ratchet EXP on the 240 and 180. One ratchet is combined with the threaded ring, leaving fewer parts and less weight. The drive-side bearing moves into that ring too, which widens the bearing spacing, and DT Swiss says this adds 15 percent axle stiffness and longer bearing life.
  • The original Ratchet System on the 350. Two conical springs keep both ratchets aligned. DT Swiss calls it marginally heavier than Ratchet EXP, and the hub shell and axle on the current 350 have been reworked to cut weight.
  • Tooth counts you can change. Ratchet System hubs start at 36 teeth and can be changed to 18, 24, 36 SL or 54 SL, while Ratchet EXP uses 36 or 54. More teeth mean less pedal travel before the hub catches, so you can tune it to your riding after the wheel is built.
  • Freehub service without tools. The end caps and freehub come off by hand for cleaning and regreasing, with no special tools. DT Swiss says the same design lets you change to a different drivetrain standard in seconds.
  • SINC ceramic bearings on the 180. The 180 pairs Ratchet EXP with ceramic bearings where the 240 uses steel. DT Swiss credits them with low friction and low rolling resistance.

The DT Swiss hubs we build with

DT Swiss makes both J-bend and straight-pull hubs, and the two are not interchangeable - a straight-pull hub needs straight-pull spokes, full stop. Pick the hub first in the configurator and the spoke list filters itself to whichever head your hub takes, so the mistake is not available to make.

Axle spacing has to match your frame or fork, and it is the single most common thing people get wrong when ordering a wheel. We build DT Swiss hubs in 100mm, 110mm, 130mm, 135mm, 141mm, 142mm, 148mm, 197mm. If you are unsure what your frame takes, measure the inside faces of the dropouts before you order, or email us and we will work it out with you.

What to pair with a DT Swiss hub

A wheel is a system: the rim decides the tire and the braking, the hub decides the drivetrain and the axle fit, and the spokes have to suit both. Start from whichever end matters most to you and the configurator will keep the other end compatible.

Popular DT Swiss hub and rim pairings

Rims our customers build with each DT Swiss hub, led by the pairings they choose most often in our build records since 2009. Every rim listed is in the builder today in a drilling and brake type that fits; tap a hub to start that build.

Every model of both brands that fits, on one page: ENVE wheels with DT Swiss hubs, DT Swiss wheels with DT Swiss hubs, Velocity wheels with DT Swiss hubs, Stan's NoTubes wheels with DT Swiss hubs, WTB wheels with DT Swiss hubs, HED wheels with DT Swiss hubs, Kinlin wheels with DT Swiss hubs, Boyd wheels with DT Swiss hubs, Race Face wheels with DT Swiss hubs, NOX Composites wheels with DT Swiss hubs, Astral wheels with DT Swiss hubs, Spank wheels with DT Swiss hubs, PWB wheels with DT Swiss hubs, Ibis wheels with DT Swiss hubs, Surly wheels with DT Swiss hubs, Velo Orange wheels with DT Swiss hubs, Derby wheels with DT Swiss hubs, Reserve wheels with DT Swiss hubs, Chromag wheels with DT Swiss hubs, Convergence We Are 1 wheels with DT Swiss hubs, Industry Nine wheels with DT Swiss hubs, Nextie wheels with DT Swiss hubs

We also build with DT Swiss Rims, if you want the whole wheel from one maker.

Popular rims brands for these builds:

Want to check spoke lengths for a DT Swiss hub before you order? Our free spoke length calculator has the measured dimensions for it.

DT Swiss custom wheel questions

Can you build a wheel with a DT Swiss hub I already own?

Yes. Choose the supply-your-own hub option in the configurator, ship it to us, and we will lace it into a new wheel with new spokes cut to the right length for that exact hub. You pay for the parts you need and the build labor.

Do DT Swiss hubs need special spokes?

The straight-pull models do - they take straight-pull spokes only, and the lacing pattern follows the hub's flange geometry rather than being a separate choice. The configurator filters the spoke list to match the hub as soon as you pick it.

Which axle spacing do I need?

Whatever your frame or fork takes - we build DT Swiss hubs in 100mm, 110mm, 130mm, 135mm, 141mm, 142mm, 148mm, 197mm. Measure between the inside faces of your dropouts if you are unsure, or email us and we will work it out from your bike.

Can a DT Swiss hub be relaced into a new rim later?

Yes, and it is one of the better arguments for a quality hub. When the rim wears out or cracks, send us the wheel and we will build the hub into a new rim with new spokes. Spokes are not reused - they have taken a set at the old rim's dimensions.

How long will my DT Swiss wheel take?

Build time comes down to parts availability rather than bench time. Your estimated ship date is shown in the configurator before you check out, so you know the date before you pay.

Not sure what to pick? Email info@prowheelbuilder.com (fastest) or leave a voicemail on 470-253-0929 — you will be talking to the people who build the wheels.

Not sure which hub or rim?

Tell the Build Assistant how you ride and what you want to spend, and it ranks complete builds for you.
