Industry Nine Hubs Custom Hand Built Wheels

Why Industry Nine hubs are different

• Hydra2 reinforced from real use. Industry Nine says feedback from over 100,000 ridden Hydra hubs showed it where to push further. The result is an axle 65 percent thicker, larger bearings and a full-contact seal system.
• Stronger parts around the pawls. Each pawl gains a tooth, for three in all, and the drive ring moves to a more fatigue-resistant steel. Deeper 5.5mm pawl pockets spread force 26 percent better, which Industry Nine says stops them deforming and lets the hub handle powerful e-bike motors.
• SOLiX and continuous phasing. Five pawls work against a 121-tooth drive ring for 605 points of engagement, or 0.59 degrees. Industry Nine says power arrives at once and then loads progressively, in a light hub for cross-country, gravel and road.

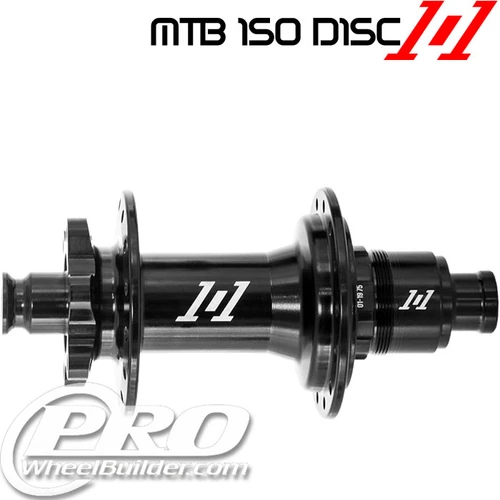

• The 1/1 keeps it simple. A dual-phase pawl drive gives 90 points of engagement, or 4 degrees, on high-capacity bearings. Conventional flanges and standard J-bend steel spokes mean it can be serviced anywhere, with no proprietary tools.
• Steel spokes on the classic hubs. The hubs on this page are the versions built for J-bend steel spokes, with scalloped flanges on the Hydra2 and SOLiX. That is what leaves the choice of spoke gauge and color open to you, instead of Industry Nine's aluminum System spokes.
• Machined in Asheville. Industry Nine makes its own hub shells, axles, pawls and drive rings in Asheville, North Carolina, and anodizes them there too. It says this leaves no failure it cannot trace to the root.

The Industry Nine hubs we build with

These are J-bend hubs, which take standard J-bend spokes - the widest choice of gauge, color and material, and the easiest to source anywhere in the world if you ever break one far from home.

Axle spacing has to match your frame or fork, and it is the single most common thing people get wrong when ordering a wheel. We build Industry Nine hubs in 100mm, 110mm, 135mm, 141mm, 142mm, 148mm, 150mm, 157mm. If you are unsure what your frame takes, measure the inside faces of the dropouts before you order, or email us and we will work it out with you.

What to pair with a Industry Nine hub

A wheel is a system: the rim decides the tire and the braking, the hub decides the drivetrain and the axle fit, and the spokes have to suit both. Start from whichever end matters most to you and the configurator will keep the other end compatible.

Popular Industry Nine hub and rim pairings

Rims our customers build with each Industry Nine hub, led by the pairings they choose most often in our build records since 2009. Every rim listed is in the builder today in a drilling and brake type that fits; tap a hub to start that build.

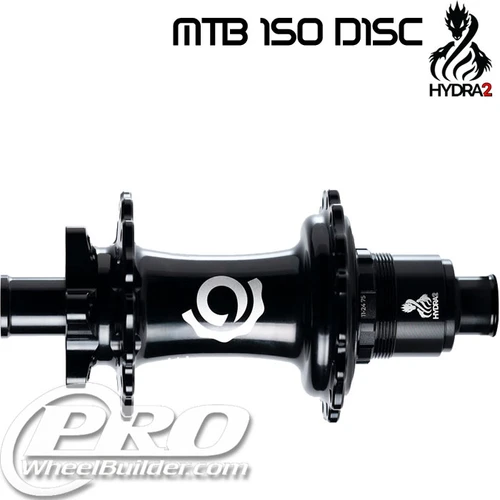

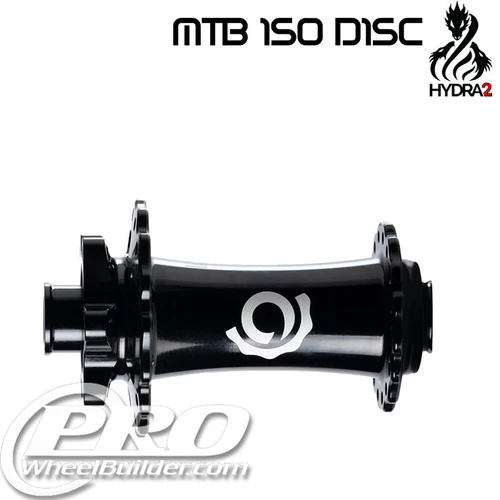

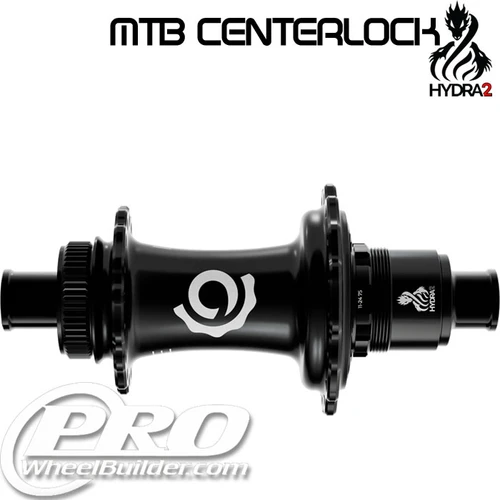

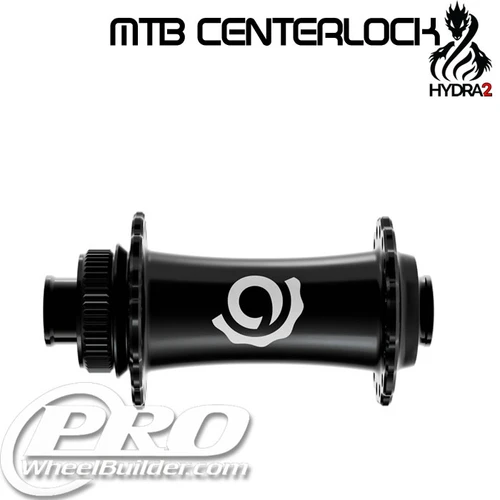

• Industry Nine Hydra 2 MTB with Race Face ARC Offset 30, Race Face AR Offset 30, Velocity Dually, Stan's NoTubes Arch MK4, Stan's NoTubes Flow MK4, DT Swiss EX 511

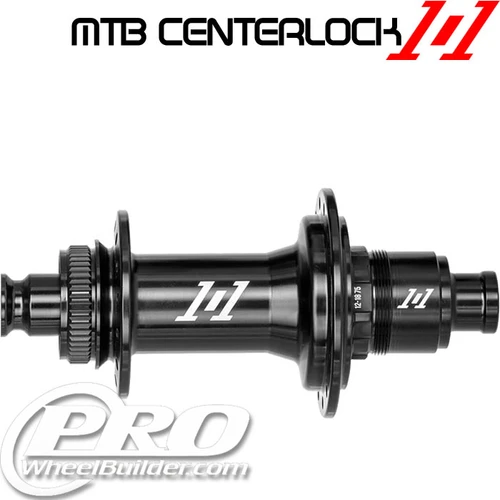

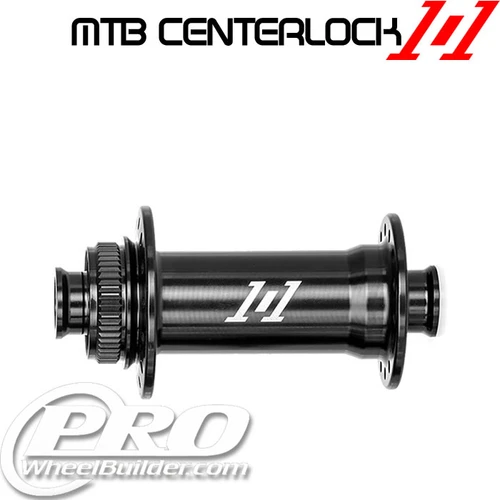

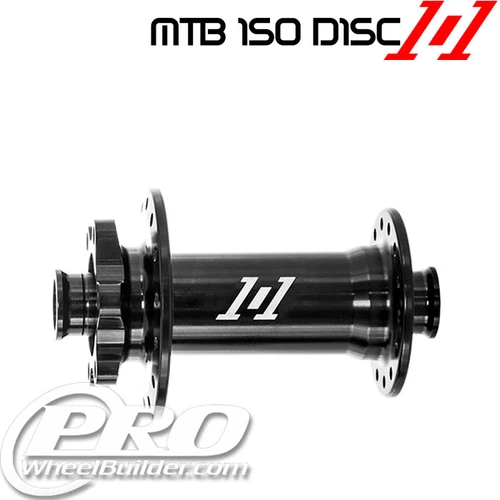

• Industry Nine 1/1 MTB with Ibis Blackbird Send 2, DT Swiss FR 541, Race Face AR Offset 30, Velocity Cliffhanger, Reserve 25 GR, Stan's NoTubes Flow EX3

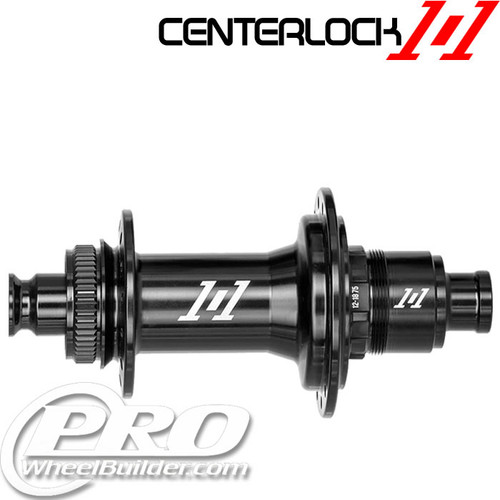

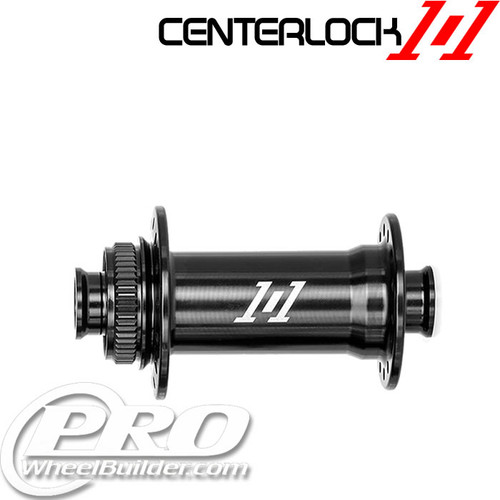

• Industry Nine 1/1 Road with NOX Composites Citico, Velocity Aileron, Reserve 25 GR, DT Swiss R 460, DT Swiss GR 531, NOX Composites Falkor 36D

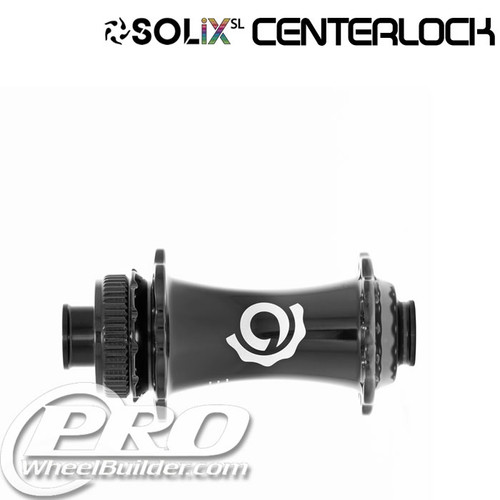

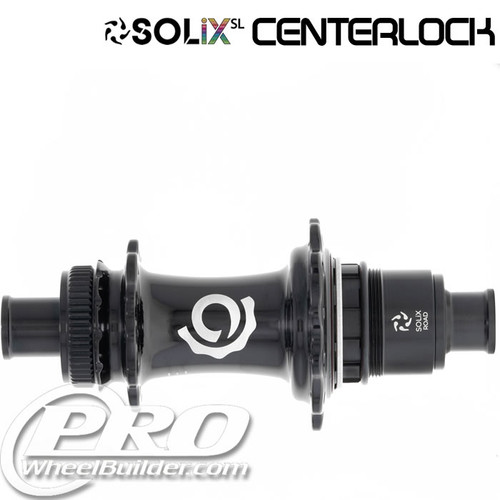

• Industry Nine Solix CL with Boyd CCC, DT Swiss G 540, DT Swiss RR 521, NOX Composites Skyline, NOX Composites Falkor 55D, Velocity Dyad

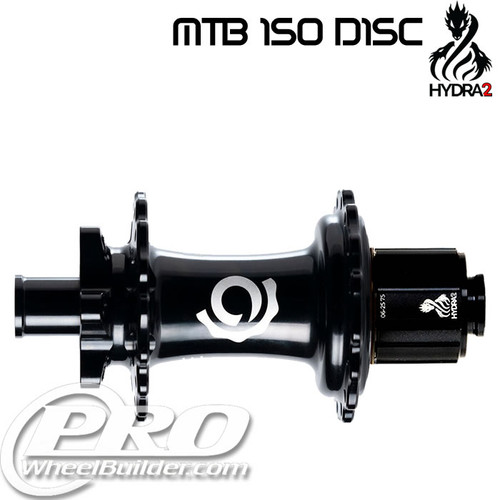

• Industry Nine Hydra 2 Single Speed with DT Swiss BR 710, HED B.A.D. Alloy, HED B.D. Carbon, WTB KOM Light TCS I 76, Surly My Other Brother Darryl, Surly Clown Royal Symmetric

Every model of both brands that fits, on one page: ENVE wheels with Industry Nine hubs, Stan's NoTubes wheels with Industry Nine hubs, DT Swiss wheels with Industry Nine hubs, NOX Composites wheels with Industry Nine hubs, Race Face wheels with Industry Nine hubs, WTB wheels with Industry Nine hubs, HED wheels with Industry Nine hubs, Velocity wheels with Industry Nine hubs, Ibis wheels with Industry Nine hubs, Spank wheels with Industry Nine hubs, Boyd wheels with Industry Nine hubs, PWB wheels with Industry Nine hubs, Surly wheels with Industry Nine hubs, Derby wheels with Industry Nine hubs, Astral wheels with Industry Nine hubs, Reserve wheels with Industry Nine hubs, Kinlin wheels with Industry Nine hubs, Chromag wheels with Industry Nine hubs, Convergence We Are 1 wheels with Industry Nine hubs, Industry Nine wheels with Industry Nine hubs, Nextie wheels with Industry Nine hubs, Velo Orange wheels with Industry Nine hubs

Popular rims brands for these builds:

• Astral Rims
• Boyd Rims
• Chromag Rims
• Convergence We Are 1 Rims
• Derby Rims
• DT Swiss Rims
• ENVE Composites Rims
• H Plus Son Rims
• HED Rims
• IBIS Rims
• Industry Nine Rims
• Kinlin Rims
• Mavic Rims
• Nextie Rims
• NOX Composite Rims
• PWB Rims
• Race Face Rims
• Reserve Rims
• Spank Rims
• Stan's No Tube Rims
• Surly Rims
• Velo Orange Rims
• Velocity Rims
• WTB Rims

Want to check spoke lengths for a Industry Nine hub before you order? Our free spoke length calculator has the measured dimensions for it.
